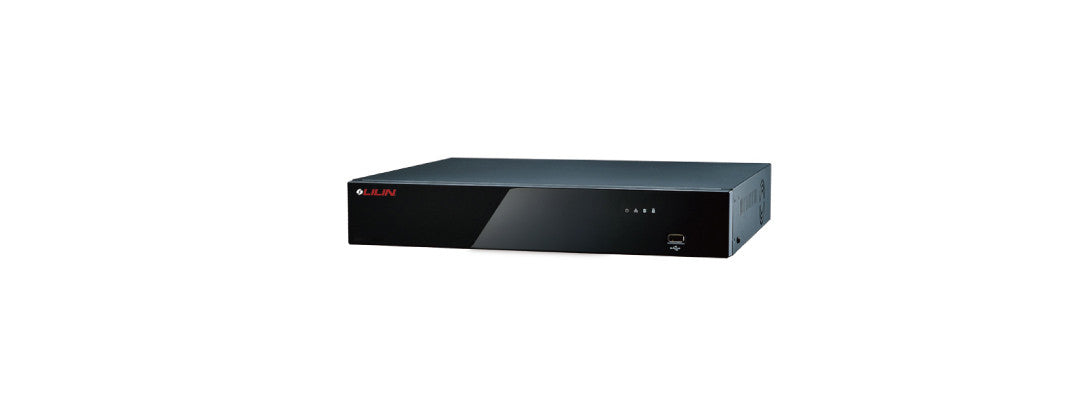

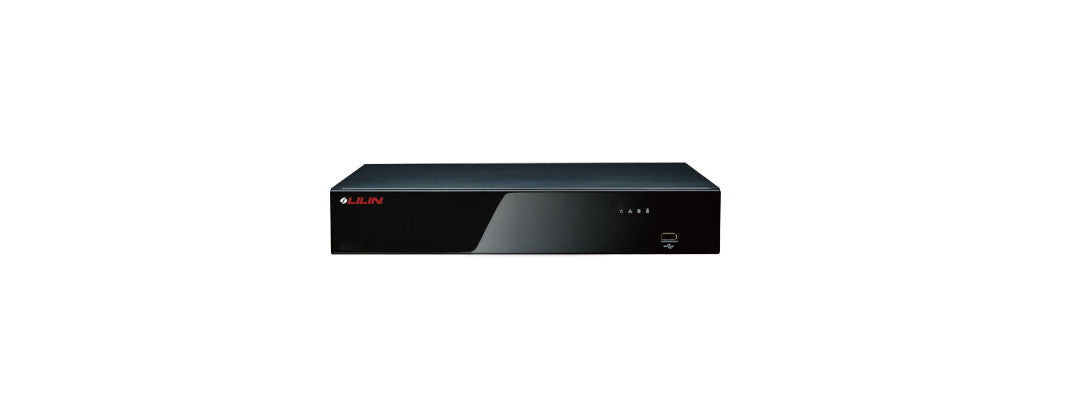

Lilin NVR6208E No HDD, 8CH, 4K PoE NVR with 10 Watt per port, 4K 30FPS
Quantity:
Choose options
Quantity:
- Taiwan chipset
- NDAA Compliant
- 8 Channel H.264/H.265 network camera Input
- Up to 4K H.264/H.265 network camera support
- 8 Port PoE, automatic network camera plug and play
- P2P QR code UID connection for APP and Navigator
- Network maximum input through up to 64Mbps
Description
The NVR6208E standalone NVR is the next generation of LILIN professional PoE NVR series. No IP addresses’ configuration for cameras is needed. The NVR6208E is built-in PoE for powering PoE cameras. The NVR6208E supports up to 8 channels Ultra HD (4K) camera recording that the Ultra High Definition, 4K or 8 Megapixels video is four times clearer than traditional 1080p. Along with its low power consumption and all-in-one sleek design, the NVR6208E provides users a simple, affordable yet professional solution for megapixel surveillance in the mainstream markets such as SMBs, retail, hospitality, and intelligent buildings.
| Model | NVR6208E |
| Supports (IP Video input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input(IP video input) | 8 CH |
| Resolution( IP video input ) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate ( IP video input ) | 240 FPS |
| Output (Video output) | HDMI 1.4 (4K 30P) / VGA 1080P |
| Spot monitor (Video Display) | HDMI & VGA sync output |
| Split Screen | 1 / 4 / 8 / 9 split division, sequence mode, freeze, alarm display |
| Digital zoom | Up to 64× on live and playback |
| Video Compression | H.264 / H.265 |
| Maximum Network Throughput | 64Mbps |
| Recording Resolution | CIF ~ 4K |
| Frame Rate | Single channel up to 1080P 60 FPS record |
| Application/ Recording Mode | Manual, schedule (continue, event, none) |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Metadata options | POS RFID AND PIN CONTROLLER USER DEFINED 2 BARCODE SCANNER GPS LPR (Denial, Allowed, Visitor) |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 8CH synchronous playback |
| Playback Resolution | CIF ~ 4K |
| Max. frame rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| Internal HDD / Swap Drive Bay | 2 × 3.5" HDD (Up to 16TB supported), Compatibility List https://www.meritlilin.com/compatiblelist/nvr1dvr3en.html |
| USB Flash Disk(Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| DVD DVD/RW(Backup) | External USB DVD / RW |
| Audio Input | 8 CH (Network camera), G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Network Camera Two Way Audio / IP camera 2-way audio | Yes |

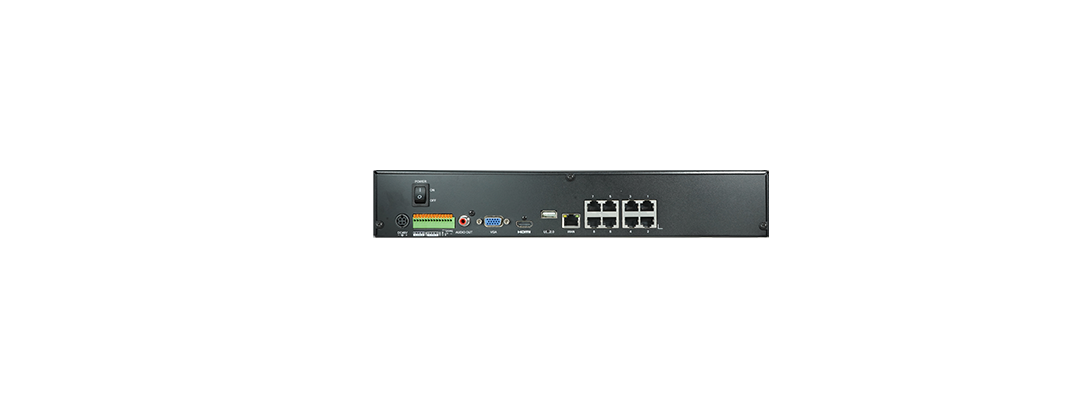

| Network ports | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE × 8 (802.3af) |
| Protocols | ARP、TCP/IP、UDP、HTTP、HTTPS、SMTP、SNMP、FTP、DDNS、PPPoE、NTP、RTP、 RTSP、DHCP、ONVIF Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P(Network) | APP scan QR Code / UID connection |
| RTSP service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery( Network ) | Network camera plug and play via PoE port, otherwise WS-Discovery and IP Scan, automatically quick IP address setup for network cameras also available |
| Network | Live / playback / backup / menu configuration / event log |
| VMS | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Ports | DI × 8 and DO × 1 (With programmable condition) |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recording day | Automatic recording day calculator |
| Time | Daylight saving / NTP / External USB GPS time sync / Keyboard |
| PTZ protocol | HTTP、ONVIF |
| Keyboard Keypad | Support PIH-931D keyboard input (Connector box required) |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| RS-485 | One set for keyboard controller |
| Remote Controller | Remote controller addressable up to 255 NVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Microphone | USB Mic (Optional) |
| Wi-Fi Dongle | WiFi and 4G external USB dongle supported (Certified brand only) |
| USB GPS Receiver | Support |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
| Power Supply | DC 48V 2A 120W (Max) for HDDs and cameras |
| NVR Consumption (without HDD) | ≤ 8W |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | 5% ~ 80% |
| Dimension (W×L×H) | 360 × 316 × 60 mm |
| Weight | ≈2.5 KG (Without hard drive) |
