Indoor; PoE BT Injector; 90 Watt; AC 100-240V

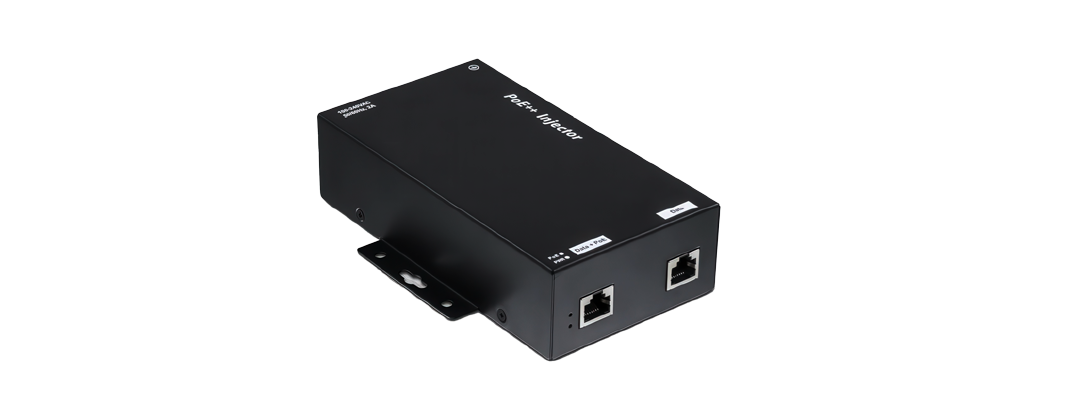

The PI9018A is a high-performance, single-port, industrial-grade PoE (Power over
Ethernet) injector designed for small to medium-sized network environments to
enhance network connection flexibility and performance. This product has one
Ethernet input port (data only) and one Ethernet output port (data + power).
The PI9018A converts standard 100-240 VAC input power into PoE DC power. It delivers
up to 90 watts of robust power over existing LAN cables to network devices compliant
with the IEEE 802.3bt PoE++ standard, such as high-end security cameras, wireless
access points, or other devices requiring high power.
| Model | PI9018A |
| Operating temperature | 0℃〜50℃ (32° F to122° F) |
| Operating humidity | -10℃〜70℃ (14° F to 158° F) |
| Storage Humidity | 10%~90% (Non-condensing) |
| Dimensions | 155 mm (H) x 111.4 mm (W) x 40 mm (D) |
| Weight | 610g |
| IEEE Standard | IEEE802.3af PoE standard, IEEE802.3at PoE+ standard, IEEE802.3bt PoE++ standard |
| Network connector | RJ-45 |
| Network Cable | Cat.5e UTP/STP cable for 10/100/1G/2.5GBase-T. Cat.6 UTP/STP cable for 5GBase-T. Cat.6A UTP/STP cable for 10GBase-T. |
| No. of Ports | 1 |
| Pass Through Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
| Power over Ethernet Output | Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-). |
| Power over Ethernet Output | Output Voltage: 53VDC (Min), Power Output: 90 Watts. |
| Input Power Requirements | Input Voltage: 100-240Vac/50-60Hz. |
| Input Power Requirements | Input Current: 2A@100-240Vac. |
| Indicators | Power LED: System Power (Solid) & POE LED: PoE Output Power (Solid), PoE Fault (Flashing) |
| Regulatory Compliance | CE,FCC |
