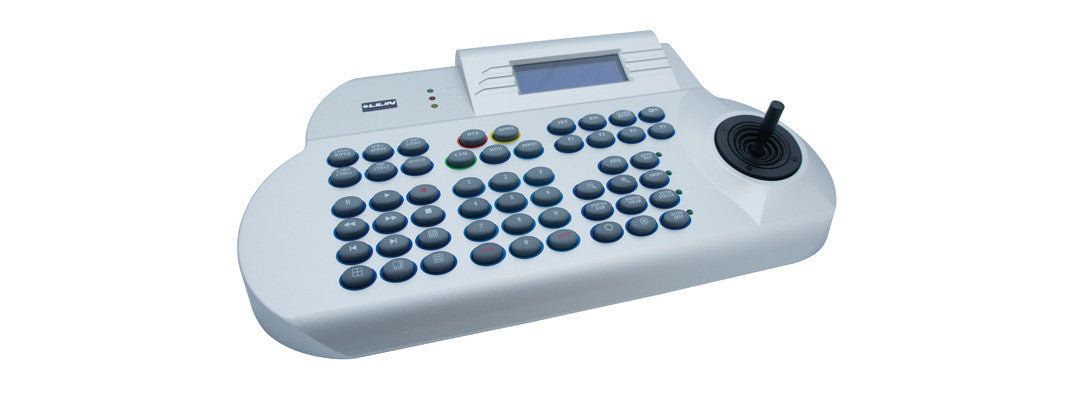

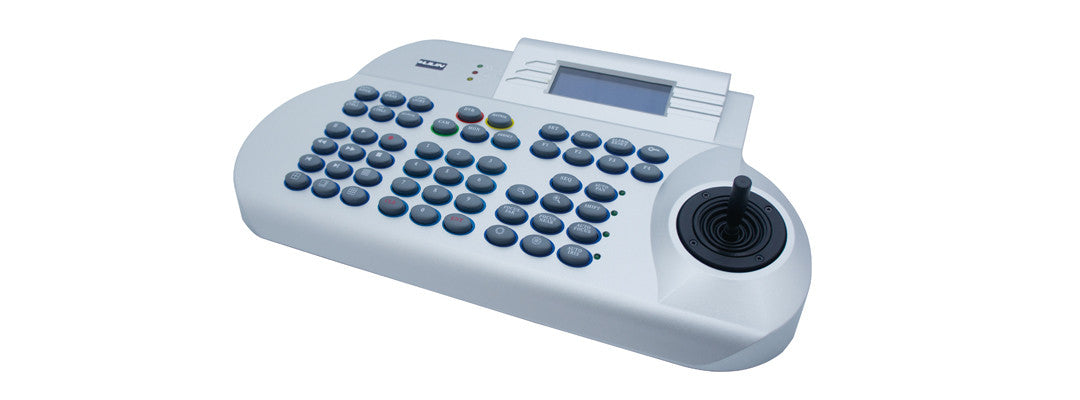

Lilin PIH-932T Multi-functional 54 Key Keyboard Controller, Joystick PT, Keypad Zoom
Quantity:
Choose options
Quantity:
The PIH-932T is a keyboard controller for a range of matrix switchers, dome cameras, DVR and telemetry receivers. I t allows operation a l l the functions of equipment and provides a simple operator interface. When matrix is present in the system, up to 8 keyboards can be used. However, one of the keyboards must always be configured as the Master, having greater access to settings than the slaves. Data is transmitted via screened, twisted pair cables, usually in serial configuration. (RS-485)
| Model | PIH-932T |
| Joystick | 2 Axis (Pan/ Tilt) |
| Movement Speed control | Pan 8 StepsTilt 8 Steps |
| Data Communication | RS-485 Standard(Format N, 8, 1, Baud rate 9600bps) |
| Connector | RJ-45 / 8Pin |
| Control Mode | PTZ / MATRIX / DVR |
| LCD Display | 20 Characters x 4 Lines |
| Keyboard Keypad | Total 54 keys 0~9 Numeric keys |
| Operating temperature | -5°C - + 60°C (23°F - 140°F) |
| Dimensions | 340(W) x 194(D) x 103(H) mm |
| Weight | 1300 g |
| Input Voltage | DC 12V 10% / 250mA |
| Power Consumption | 3W |
