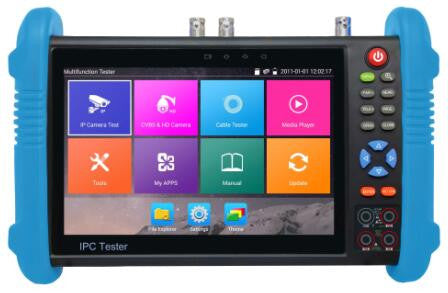

Metricu IPC-600F 7-inch IP/TVI/CVI/AHD/SDI Camera Tester

Metricu IPC-600F Features

• Signal System: NTSC / PAL (Auto-Selecting)
• Display: New 7 inch IPS touch screen, 1280*800 resolution
• IP camera type: 4k, H264, H265, Onvif, OnvifPTZ, ACTi, Dahua IPC-HFW2100P, Hikvision,DS-2CD864-E13, Samsung SNZ-5200, Honeywell HICC-2300T, etc. Customized protocols are available
• Rapid Video: Auto view the video, create testing report
• Hikvision test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
• Dahua test tool: Dahua camera test, modify the user name, password and IP parameters
• Network test: FTP Server, Static IP address, DHCP, simultaneously test different segments´ IP cameras, Network bandwidth testing, IP discovery
• IP camera apps: Support video management software to view IP camera image, such as Hikvision ivms-4500, Dahua gDMSS HD Lite
• RTSP Support: RTSP to view IP camera image
• LCD adjust: Adjustable brightness, contrast, color of LCD

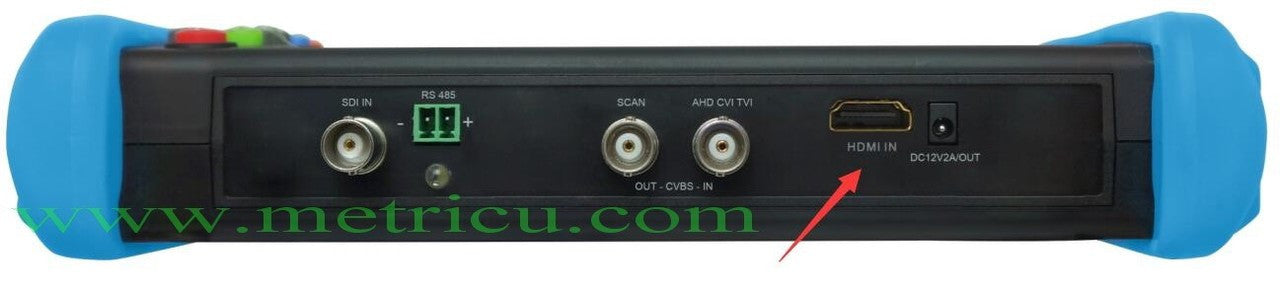

• HDMI input: 1 channel HDMI input, support 1080P

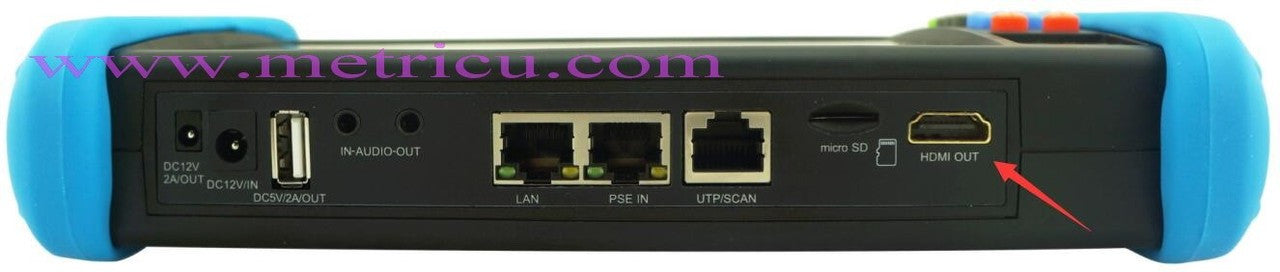

• HDMI signal output: 1 channel HDMI output, support 1080P
• Network port: 10/100M auto adjust, RJ45
• Wifi Built in: Wifi, speeds 150M, receive wireless camera image etc. create wifi hotspot
• PoE power output: PoE 24W power supply to IP camera
• Video Input / Output: 1 channel BNC input & 1 channel BNC looped output
• Video Output Mode: 1.0 Vp-p
• CVBS loop test: the tester send and receive color bar generator signal to check BNC cable
• Power Adapter: 5V DC, 2A input supply
• Power output: 12V DC, 2A power output for camera
• Audio input: 1 channel audio signal input to test pickup device, 1 channel audio signal output to connect headphone
• USB power output: USB 5V 2A power output to mobile phone
• Communication: RS485
• Baud Rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
• Power Saving Features: Sleep mode, Battery level indicator
• PTZ Address Scanning: Scan for local PTZ address over data cables
• Rechargeable Battery: 6 hours charge, work for 10 hours
• Battery: 1 pcs Lithium Ion Polymer Battery; 7.4V DC, 5000mAh
• Video Display: Displays video signal from analog input
• Video Signal: Color bar generator for monitor testing
• Cable Test: Checks connections of UTP cables, RJ45 cable TDR test
• PTZ Protocol: Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc.
• PTZ data: Capture Reads and displays commands sent from controllers
• Image: 4x zoom 4x zoom image display and video out
• Photograph: Snapshot and save the image as JPG file and screenshot
• Video record: Video recording and playback from the SD card
• Port Finder: Find the connected PoE port quickly
• IP scan: Find out the connected IP camera or network equipment´s IP address
• Link monitor: Check the IP address whether is occupied
• Ping testing: Network and Ip camera´ping testing
• PoE tester: PoE voltage testing, PoE port flicker, PoE link monitoring
• Night Led: Built Led lamp
• SD card: With 8G Micro SD card, support Micro SD card for recording, max support 32G SD card
• Tester: Play screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone)
• Drop-down menu: User can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
• HD-TVI input: HD-TVI camera test, video record and playback, coaxial PTZ control and call camera OSD menu
• HD-CVI input: HD-CVI camera test, video record and playback, coaxial PTZ control and call camera OSD menu
• AHD input: AHD camera test, video record and playback, coaxial PTZ control and call camera OSD menu
• HD-SDI/EX-SDI input: HD-SDI / EX-SDI camera test, support 1080P 50/60 FPS
• Multimeter: voltage, current, resistance and capacitance can be tested, continuity testing, diode testing
• Dimension: 240mm x 158mm x 44mm (9.45" x 6.22" x 1.73")
• Weight: 1000g (2.2240 lb)
• Warranty: 1 year
