NUUO SCB-G3-3004
NUUO SCB-G3-3004
NUUO DVR Capture Card Specs

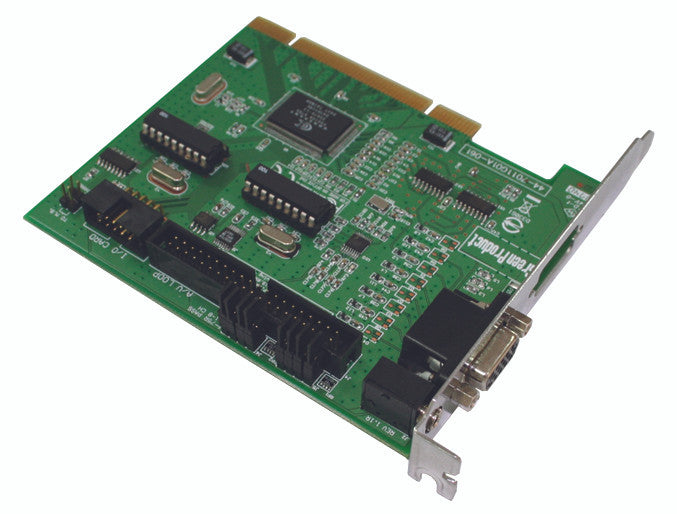

NUUO SCB-G3-3004 DVR Capture Card

NUUO

NUUO SCB-G3-3004 DVR Capture Card

Sale price$190.00
Discontinued
SKU: SCB-G3-3004

Contact

NUUO SCB-G3-3004 Features

  • Video Input: 4 Cameras
  • Audio Input: 4 Channels
  • Maximum Cards: 2 Cards (when 2 3000 series cards are installed on one desktop, the system can only support 352x240 (NTSC) 352x288 (PAL) resolutions for each)
  • Display Rate: 120 fps (NTSC), 100 fps (PAL)
  • Recording Rate @CIF: 120 fps (NTSC), 100 fps (PAL)
  • Video Resolution: NTSC: 704x480, 640 x 480, 352x240; PAL: 704x576, 640 x 576, 352x288
  • Compression Format: H.264
  • Interface: PCI
  • Support I/O Card Number: 4 Cards
  • Available I/O Card: SCB-C24/C26/C28, SCB-S-IO, SCB-G3-IO
  • Dimensions: 200 (W) x 120 (H) mm
  • Warranty: 2 Years
  • Please note: Also available in 8 camera (SCB-G3-3008) and 16 camera (SCB-G3-3016)

System Minimum Requirements

  • OS Supported: Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Windows 2008 R2 (64-bit)
  • CPU: Intel Core 2 Duo E5300
  • RAM: 2 GB
  • HDD: 250 GB
  • Motherboard: Intel P55, H55, X58, P45, P43 chip, MB vendor ASUS, Gigabyte, or MSI with Intel Chipset recommended
  • Display: ATI Radeon HD 4350 or above (ATI Driver V11-5 recommended ATI Driver V10 not support)

NUUO SCB-G3-3000 Series DVR Card Overview

NUUO's SCB-G3 Series is a MPEG4/H.264 software compression analog video capture card that allows you to integrate an analog camera into a hybrid system along with high resolution IP cameras. NUUO DVR Cards are a PC-based analog recording system that supports analog cameras. The H.264 hardware compression cards can increase the CPU efficiency while the Mpeg4 software compression cards will fit nicely into a wide array of projects. Both NTSC and PAL standards are compatible with any NUUO DVR. Main Console 3.5.10 is officially released to support HD-SDI cameras. NUUO DVR can be upgraded into a NDVR hybrid system by adding IP camera license onto it. It is a simple one-step process for any DVR owners who are ready to leap into the IP world. Multisite projects or large scale single site projects are both easily accommodated by NUUO DVR/NDVR solutions through the addition ofNUUO CMS. NUUO CMS can manage an unlimited number of NUUO servers and cameras including DVR and NDVR hybrid. (IP camera licenses sold separately)
