NUUO Titan Network Video Recorder

Sale price$0.00
Discontinued
SKU: NUO-Titan

Contact

NUUO Titan Features

Server Highlights

  • Linux Embedded
  • Support 50 brands of IP manufacturers and over 1,310 camera models (Device pack 2.0) (http://support.nuuo.com for details)
  • ONVIF compatible
  • Record up to 64 megapixel cameras (through license upgrade)
  • High throughput (250Mbps) supporting up to 64x 5-Megapixel cameras (based on H.264, 10 fps, moderate traffic)
  • Support up to 10 Megapixel single camera
  • NUUO Command Chain Technology – Synchronize user accounts across 100 servers through a single server instantly
  • Centralized I/O and event respond systems
  • Dual gigabit Ethernet ports
  • Camera Dual (2nd) Stream support (http://support.nuuo.com for details)
  • Stream up to 192 camera connections to multiple clients simultaneously for Live View (128) and Playback (64)
  • Scheduled Backup to FTP location
  • Support continuous, scheduled, event based and I/O based recording
  • Synchronized audio and video recording

Client Highlights

  • Manage up to 100 servers, 400 channels live view and 100 channels playback simultaneously.
  • NUUO Image Fusion Technology – stitch up to 10 cameras together to form a consecutive single view for easier viewing (http://support.nuuo.com for details)
  • Panorama 360° PTZ-- Immervision and VIVOTEK fisheye
  • Digital and Optical PTZ
  • Support Stream Profile for remote live view bandwidth control (Original / 300 kbps / 100 kbps)
  • Remote server configuration
  • Centralized E-map
  • Centralized I/O Panel and Event Panel
  • Public View and Private View for each user
  • View Tour to loop through selected Views
  • Instant Playback
  • Save video clips into AVI, ASF and MOV
  • Intelligent Search in playback to quickly find the subject of interest
  • Twin Clients to support identical, full featured software client and web client
External Supports
  • External storage support through 3rd party DAS, iSCSi (http://support.nuuo.com for details)
  • Support up to 256 NUUO I/O boxes (SCB-C24/C26/C28)
  • Support APC Uninterrupted Power Supply (Smart-UPS 750 VA / APC Back-UPS 500 ES / APC Smart UPS 1500 / APC Smart UPS 3000)
NUUO Titan Overview
Titan NVR is a Linux embedded enterprise solution for large single site or multi-site deployments. It utilizes File Ring recording engine which is optimized for storing and retrieving large amount of megapixel video data. Titan is a true cross-platform system which supports over 50 brands and 1,310 models (Device pack v2.0) of IP/Megapixel cameras & the camera support list is updated every month. (Click here to see a Solutions Partners list). Its client (NuClient) can run on both Mac and Windows platform. User can centrally management multiple servers, clients and cameras from anywhere through both software client and web client. User can easily upgrade Titan’s camera license through serial number remotely up to 64 cameras per server & Titan supports up to 64x 5-Megapixel cameras (based on H.264, 10 fps, and moderate traffic). Titan supports 4 different external events and 3 system events. External events include camera motion, camera signal lost, camera input trigger and I/O box input trigger. User can be instantly notified of these events through client workstation, Email and special outputs such as siren. Software enabled digital pan, tilt and zoom cameras without physically controlling the camera (Digital PTZ) along with the ability to remotely control speed domes and PTZ cameras ( Optical PTZ). These feaues give you total contorl of your network cameras. The software also supports Immervision lens and VIVOTEK fisheye cameras. The NUUO iViewer is a free mobile app that allows you to view video from your NUUO surveillance systems. User can take a snapshot, control physical/ digital PTZ and digital input and output devices. For more information, please search “NUUO” at Apple Store or Android Market.
Available Models: Please Call for Pricing.

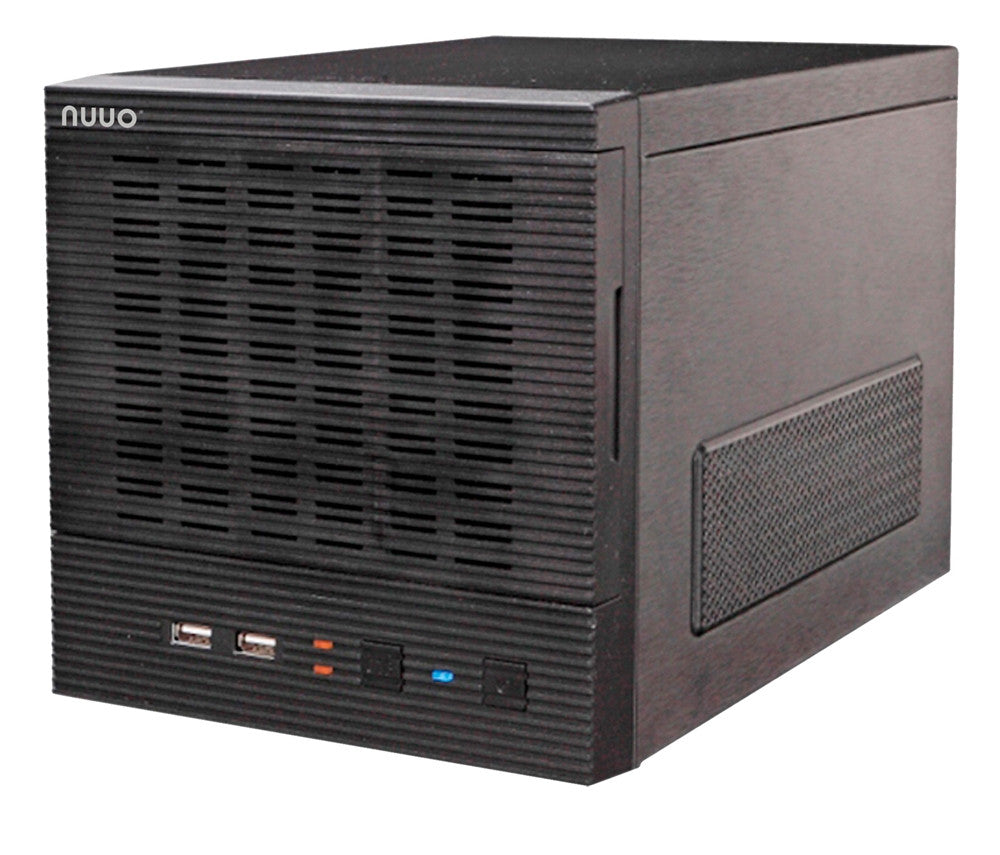

NT-4040-US 250Mbps Throughput NVR Standalone 4ch, 4bay
NT-4040-US-4T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 4TB included, US Power Cord, Data recovery plan included
NT-4040-US-8T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 8TB (4TB x2) included, US Power Cord, Data recovery plan included
NT-4040-US-12T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 12TB (4TB x3) included, US Power Cord, Data recovery plan included
NT-4040-US-16T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 16TB (4TB x4) included, US Power Cord, Data recovery plan included

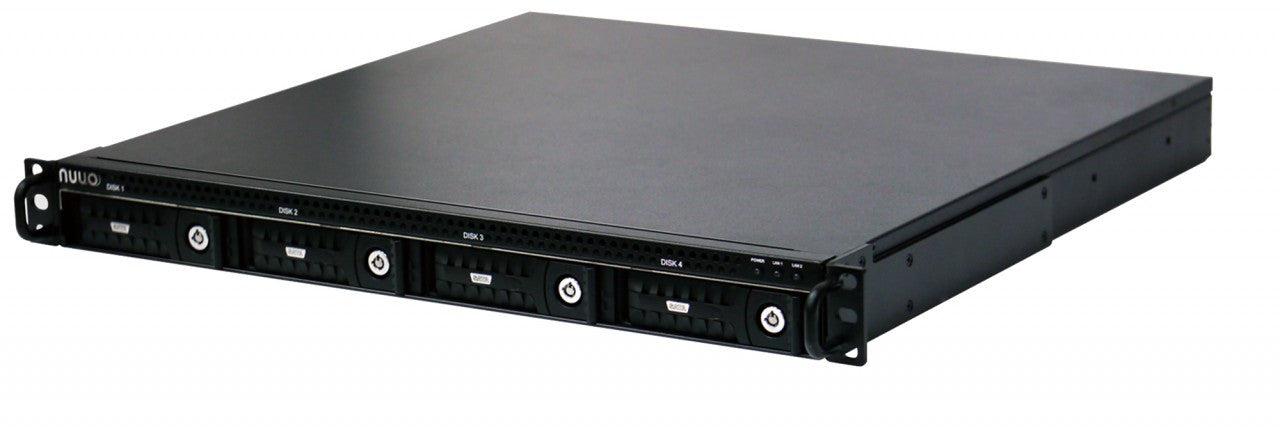

NT-4040R-US 250Mbps Throughput NVR Standalone 4ch, 4bay, rackmount
NT-4040R-US-4T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 4TB included, rackmount, US Power Cord, Data recovery plan included
NT-4040R-US-8T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 8TB (4TB x2) included, rackmount, US Power Cord, Data recovery plan included
NT-4040R-US-12T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 12TB (4TB x3) included, rackmount, US Power Cord, Data recovery plan included
NT-4040R-US-16T-4 250Mbps Throughput NVR Standalone 4ch, 4bay, 16TB (4TB x4) included, rackmount, US Power Cord, Data recovery plan included

NT-8040R-US 250Mbps Throughput NVR Standalone 4ch, 8bay, rackmount
NT-8040R-US-4T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 4TB included, rackmount, US Power Cord, Data recovery plan included
NT-8040R-US-8T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 8TB (4TB x2) included, rackmount, US Power Cord, Data recovery plan included
NT-8040R-US-12T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 12TB (4TB x3) included, rackmount, US Power Cord, Data recovery plan included
NT-8040R-US-16T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 16TB (4TB x4) included, rackmount, US Power Cord, Data recovery plan included
NT-8040R-US-24T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 24TB (4TB x6)included, rackmount, US Power Cord, Data recovery plan included
NT-8040R-US-32T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 32TB (4TB x8)included, rackmount, US Power Cord, Data recovery plan included
NT-8040RP-US 250Mbps Throughput NVR Standalone 4ch, 8bay, rackmount , Redundant Power Supply
NT-8040RP-US-4T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 4TB included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included
NT-8040RP-US-8T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 8TB (4TB x2) included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included
NT-8040RP-US-12T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 12TB (4TB x3) included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included
NT-8040RP-US-16T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 16TB (4TB x4) included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included
NT-8040RP-US-24T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 24TB (4TB x6) included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included
NT-8040RP-US-32T-4 250Mbps Throughput NVR Standalone 4ch, 8bay, 32TB (4TB x8) included, rackmount, US Power Cord, Redundant Power Supply, Data recovery plan included

NT-Titan-UP 01 NVRTitan IP license, 1 license
NT-Titan-UP 04 NVRTitan IP license, 4 licenses
NT-Titan-UP 08 NVRTitan IP license, 8 licenses
NT-Titan-UP 12 NVRTitan IP license, 12 licenses
NT-Titan-UP 16 NVRTitan IP license, 16 licenses
NT-Titan-UP 20 NVRTitan IP license, 20 licenses
NT-Titan-UP 25 NVRTitan IP license, 25 licenses
NT-Titan-UP 28 NVRTitan IP license, 28 licenses
NT-Titan-UP 32 NVRTitan IP license, 32 licenses
NT-Titan-UP 36 NVRTitan IP license, 36 licenses
NT-Titan-UP 60 NVRTitan IP license, 60 licenses
