Planet ANT-SE17AD 2x2 MIMO 5GHz 17dBi Sector Antenna (Dual-Polarity, 90 degrees,

• 2x2 MIMO dual-polarity sector antenna
• Powerful gain of 17dBi and frequency of 5150～5850MHz
• Half-power beamwidth (H: 90 degrees, V: 7 degrees)
• Transmittance distance of up to 5km
• IP67 rating
• 2 N-type female connectors

Boost Long-range Wireless Coverage in Point-to-Multipoint Networks

PLANET brand-new Dual-polarity Sector Antennas feature 2x2 MIMO technology with 17dBi high-gain signal sensitivity and 90-degree sectorial coverage, and are equipped with two N-type female connectors. They are perfectly helpful for 802.11n and 802.11ac outdoor wireless access points in multithreaded communications as they offer a maximum throughput of 300Mbps or 866Mbps for long-distance Point-to-Multipoint coverage and wireless applications.

As the ANT-SE17AD can effectively enhance the performance and coverage of the 802.11ac 5GHz environment, it is also quite suitable for outdoor wireless LAN applications, such as point-to-point connection between the warehouses.

Fast and Space-saving 2x2 MIMO Antenna

The MIMO sector antenna enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. It thus brings users the advantage of having multithreaded communications with use of only one antenna instead of two independent antennas.

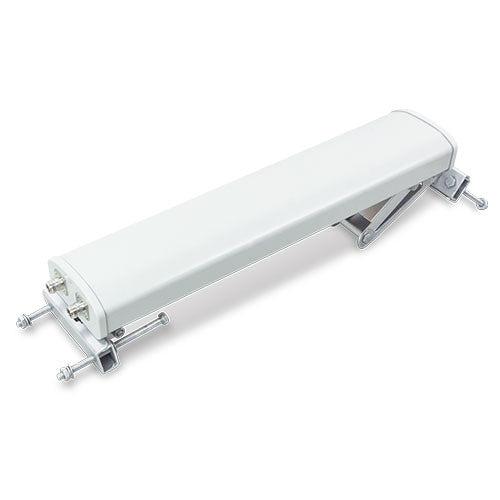

Tough Outdoor Installation

The new MIMO Sector Antenna is housed inside a rugged and weatherproof IP67-rated radome UPVC enclosure, and thus can withstand any harsh weather conditions. They come with adjustable angle brackets for adjusting the coverage angle from 0 to 10 degrees.

2x2 MIMO 5GHz 17dBi Sector Antenna (Dual-Polarity, 90 degrees, N-type female connector x 2)
