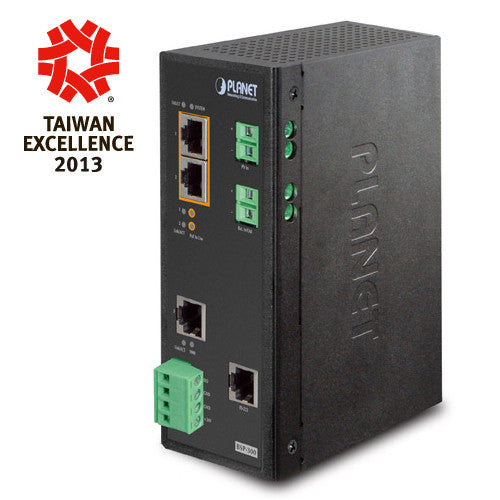

Planet BSP-300 Industrial Solar Power PoE Switch

Planet

Planet BSP-300 Industrial Solar Power PoE Switch

$521.25
Discontinued
SKU: BSP-300

Usually Ships in 10 - 12 days

Link to Manufacturer's Page

Contact

Planet BSP-300 Features

Hardware Specifications
Network Connector 3-Port RJ-45 for 10/100/1000Base-T
(2-Port with 802.3at / 802.3af PoE injector function)
Console Port 1 x RS-232 RJ-45 serial port
Power Output 1 x DC out 24@ 2A maximum (two-pin terminal block)
2 x PoE out 52VDC; max. 30 watts per PoE port
LED System
• System (Green)
• Fault (Green)

Per PoE Port (Port 1 / Port 2)
• Link / Active (Green)
• PoE In-Use (Orange)

LAN Port (Port 3)
• 1000 Link / Active (Green)
• 10/100 Link / Active (Green)

Per PoE Interface
• Power LNK/ACT (Green)
• PoE In-Use (Orange)
Power over Ethernet
Standard IEEE802.3at / IEEE802.3af
Port Port 1, Port 2
Power Pin RJ-45 Pin# 1/2 (+); Pin# 3/6 (-); PSE End-span
Power Voltage Injecting DC 52V
Consumption 30 watts max.; PoE Class 4
Electrical Characteristics
System Voltage Ratings DC 24V
Maximum Charging Current 15A
Max. Solar Array VOC DC 60V
Max. Operating Voltage DC 45V
Total Current Consumption While operating -32Ma
At idle -11mA
High Temperature Shutdown 100 degrees C disconnect solar and load
80 degrees C reconnect solar and load
Overload Capacity Over 15 Amp will cut off output load
Battery Charging Characteristics
Charge Algorithm Bulk charge (constant current), absorption charge (constant voltage) and floating charge. Absorption and floating charge with PWM protection.
Maximum Output Current 15A
Nickel-cadmium Battery ± 40 mV/degrees Celsius for NiCad type batteries, charge cut-off @ 55 degrees C
(Temperature compensation Baseline@ 25 degrees C)
Lead-acid Battery (Default Setting) ± 60 mV/degrees Celsius for lead acid type batteries, charge cut-off @ 55 degrees C
(Temperature compensation Baseline@ 25 degrees C)
Float Charge Voltage DC 27.2V (26.0~30.0V)
Absorption Charge Voltage DC 29.2V (28.0~32.0V)
LVD (Low Voltage Disconnection) DC 22.2V (21.0~25.0V)
LVR (Low Voltage Reconnection) DC 24.8V (23.0~27.0V)
Standards Conformance
Computer Interface IEEE 802.3 10Base-T
IEEE 802.3u 10/100Base-TX
IEEE 802.3ab 10/100/1000Base-T
IEEE 802.3at / 802.3af for PoE (Power over Ethernet) devices
Regulation Compliance CE, FCC
System Unit
Operating Temperature -20 ~ 60 degrees C
Storage Temperature -40 ~ 90 degrees C
Operating Humidity 20% ~ 80%
Dimensions (W x D x H) 107.2 x 152 x 65.7 mm
Weight 0.79kg
Installation DIN rail kit and wall mount kit
Software Utility Device detect / diagnostic, Windows XP / Win 7

Planet BSP-300 Overview

Industry-leading Integration of PoE Technology and Solar Power System
For the increasing demand of network installation anywhere, the PLANET BSP-300 Industrial Solar Power PoE Switch now provides the ideal solution. Powered by Zero-Carbon emission source -- the sunlight, the BSP-300 incorporates Pulse Width Modulated (PWM) charge controllers to effectively force the solar panels to operate at the same voltage as the battery bank during charging. The BSP-300 can empower the high power PoE network devices anywhere without any obstacles of geographical barrier.

With the integration of the IEEE 802.3at PoE technology and solar power system, the BSP-300 provides hassle-free and maintenance-free solution for those in need for fast connectivity that requires great flexibility and reliability, such as remote monitoring and long distance wireless communication. The BSP-300 makes the network deployment easier and more reliably.

Plug and Play High Power PoE Network Deployment
Through its two IEEE 802.3at Gigabit High Power PoE interface delivering power to wireless access points and IP cameras, the BSP-300 makes it easy to realize far-reaching data transmission and IP surveillance in remote areas. Just simply Plug and Play, the 802.3at / 802.3af PoE wireless LAN and IP surveillance system can be constructed easily without additional wiring.

Zero-Carbon and Stable Power Supply
The BSP-300 utilizes the solar power sourcing and co-works with the common nickel-cadmium battery or lead-acid battery to form an independent solar power supply system for outdoor network system. The BSP-300 delivers zero-carbon and uninterruptible power supply for continuous outdoor wireless and IP surveillance applications without the need of any cabling. This system saves 100% power loss for users. It can power the client devices and charging at the same time during the day and continuing the operation in the night with the co-working battery.

Application Sites

• Forest / National Park Monitoring
• Public Surveillance / Public Wireless LAN System
• Telecom / ISP Wireless Extension
• Hospital / Remote Health Care
• Village / Resort
• Harbor / Oil Rig / Mine Industry
• Instant Network Infrastructure for Critical Mission
