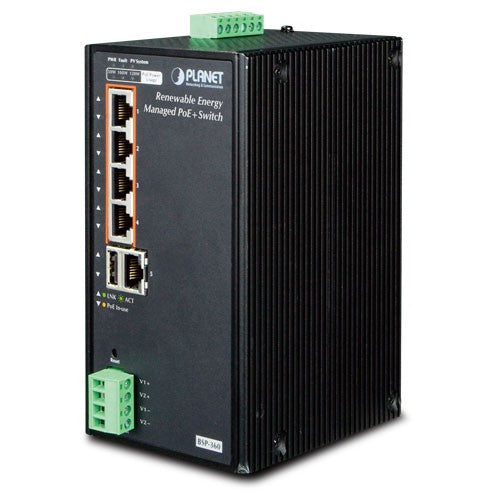

Planet BSP-360 Industrial Solar Power PoE Switch

Planet BSP-360 Feature

Physical Port

• 5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port 1 to Port 4)
• RJ45 type interface for basic management and setup
• USB type A female for setting file backup and restore

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 4 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management
  - Total PoE power budget control
  - Per port PoE function enable/disable
  - PoE port power feeding priority
  - Per PoE port power limitation
  - PD alive-check
  - PoE schedule

Battery Management

• Battery type option: Nickel-cadmium battery or lead-acid battery
• Easy diagnostic of the system operating status via LED indicator
• Battery current usage and status
• Battery capacity and power consumption statistics
• Low voltage cut-off protection: Send alert and cut off the low priority PoE port for the low power battery
• Pulse Width Modulation (PWM) Protection
  - Reverse current protection to prevent the current circuits from flowing back to the PV panel
  - Over-current and over-temperature protection
  - Reverse polarity protection (for battery and charging electrodes)

Industrial Case & Installation

• IP30 aluminum case
• DIN-rail and wall-mounted design
• Supports -10 to 60 degrees C operating temperature
• Supports ESD 6KV DC Ethernet protection
• Redundant power design
  - 24V~45V DC wide power input

Switching

• Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 8K MAC address table size
• Automatic address learning and address aging

Router

• Internet types: Dynamic IP, static IP, PPPoE, L2TP, PPTP
• Static and dynamic (RIP1 and 2) routing
• IP/MAC-based bandwidth control
• Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
• 802.1d STP and IGMP Proxy

Security

• Port filtering lets you either allow or prevent which applications can access the Internet.
• MAC filtering allows you to include or exclude computers and devices based on their MAC address
• URL filtering allows you to control access to Internet websites in an URL list
• IP source guard prevents IP spoofing attacks
• DoS attack prevention

Management

• Switch Management Interface
  - IPv4 Web switch management
  - SNMP v1, v2c
• Static and DHCP for IP address assignment
• System Maintenance
  - Firmware upload/download via HTTP
  - Configuration upload/download through HTTP
  - Hardware reset button for system reboot or reset to factory default
• NTP Network Time Protocol
• SNMP trap for interface Link Up and Link Down notification
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility

Planet BSP-360 Overview

Solar PoE Power Supply for Long Distance Wireless Surveillance Solution
Providing Plug-and-Play instant Internet service, the BSP-360 can be deployed anywhere in the city where there is no direct AC electricity. With PoE over the Cat5 cable, wireless AP and SFP media converter, you can check the current energy consumption and battery status in your office within the configuration interface of the BSP-360.

SOHO / Home-Use Gigabit Ethernet PoE Network Deployment
With its expanded home-use feature, the BSP-360 Renewable Energy PoE Switch helps SOHO / home users to create an integrated network where power is so easily utilized for transmission of data and video. It integrates IEEE 802.3at PoE technology and renewable power system. The wireless AP and PoE IP camera devices work perfectly with the BSP-360, which injects power through the Ethernet cables, thus helping SOHO / home users to build a cost-effective and reliable PoE networking environment easily.

Wireless Connection for Outdoor Long-range Application
With the four 802.3at/802.3af PoE interfaces, the BSP-360 enables you to install the PoE access point in the outdoors freely. When functioning with a pair of the wireless transmission, the BSP-360 Renewable Energy PoE Switch can be efficiently managed from remote monitor center. It enables the wireless LAN deployment to become more flexible and worry-free from the power outlet locations.**

Enables Extension of Network Deployment with Fiber Media Converter
With the 24VDC out interface, the BSP-360 enables you to supply power to other device, such as PLANET IGT-905A, that fiber media converter where high-speed and stable data transmission can be made to a remote core network. It can extend the distance to Max. 120 kilometers between BSP-360 and control center via Fiber-Optic Link.
