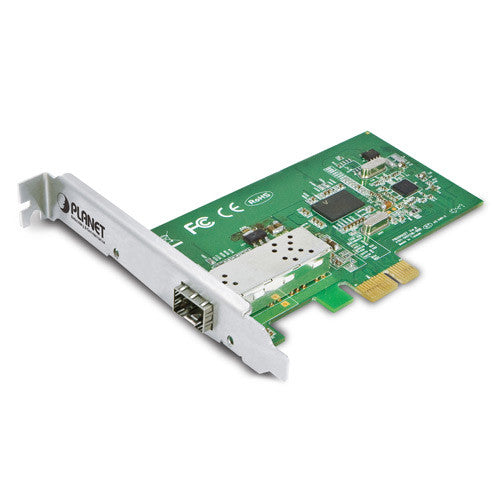

Planet ENW-9701 PCI Express Gigabit Fiber Optic Ethernet Adapter
Usually Ships in 10 - 12 days
Choose options
Usually Ships in 10 - 12 days
Usually Ships in 10 - 12 days
High Performance Boosts Network Traffic Speed and Flexible Distance Extension
PLANET ENW-9701 1000Base-X Fiber PCI-Express Ethernet adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.
Flexible Distance Option
With the 1000Base-SX / LX SFP (Small-Form Factor Pluggable) interface supported by the ENW-9701, the fiber network deployment distance can be extended from 550 meters (via multi-mode fiber) up to above 10/20/30/40/50/70/120 kilometers (via single-mode fiber, respectively). Users can choose the most suitable SFP transceiver module depending on their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.
More Bandwidth and Advanced Functions
The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.
Seamless Integration
The ENW-9701 is completely harmonious with most of the servers’ operating systems, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.
| Hardware Specifications | |
|---|---|
| Attachment Interface | PCI Express Host Bus Interface, 1 lane PCI Express Rev 1.1 |
| Media Interface | SFP slot (LC Interface) |
| Cabling Options | SFP LC connector : 50/125μm & 62.5/125μm Multi-Mode fiber cable. 9/125μm Single-Mode cable. |
| Jumbo Frame | 9Kbytes |
| LED Indicators | Link / Active per port |
| Dimensions (W x D) | 121.4 x 119.5mm |
| Advanced Functions | |
| Layer 2 Features | IEEE 802.3x Flow Control support IEEE 802.1Q VLAN support |
| Performance Enhancements | Receive-side scaling (RSS): Optimization for multiple CPUs under Windows OS control Reduced host bus traffic IP, TCP and UDP Checksum Offloading Transmit / Receive On-Chip Buffer Support IPv4, IPv6 |
| OS Support | Windows Server 2003, Windows Server 2008 Windows XP, Windows Vista™, Windows 7 Linux 2.4, Linux 2.6, Linux 64-bit Redhat Enterprise Linux 4.7 & 5.3 Mac OS X 10.4, 10.5 and 10.6 Intel-based Mac computer |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Standards Compliance | IEEE 802.3z:1000Base-X Gigabit Ethernet IEEE 802.3x: Flow Control and Back pressure IEEE 802.1Q:VLAN Tagging |
| Environment | |
| Operating | Temperature: 0~65 degrees C Relative Humidity: 5~95% (non-condensing) |
| Storage | Temperature: -10~85 degrees C Relative Humidity: 5~95% (non-condensing) |
PCI Express Gigabit Fiber Optic Ethernet Adapter (SFP)
