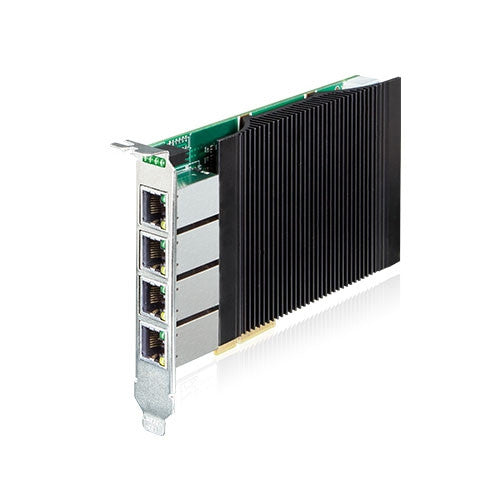

Planet ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter

Flexible PoE Expansion Leverages Existing IPC/Server Environment

PLANET ENW-9740P is a 4-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with a maximum of up to 120 watts of power output over Ethernet cables. 95W is suggested, depending on usage. Complied with PCI-E standard, the ENW-9740P can be installed on any IPC or server motherboard with PCI-E socket to make the IPC or server able to communicate other Ethernet devices and deliver power to PD devices.

Each port of the ENW-9740P can deliver 30W of power and 1000 Mb/s bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.

Hassle-free Installation for PoE Deployment

PLANET ENW-9740P is backward compatible with both IEEE 802.3af/at PoE standards which allow users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters.

With PoE application, the ENW-9740P frees the IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Standard 802.1Q VLAN Support

The ENW-9740P supports IEEE 802.1q VLAN which allows it to operate in a flexible and secure network environment. With 9.5K jumbo frame ability and IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.

Multiple OS Support

The ENW-9740P operates completely well with most of the popular and latest operating systems including Microsoft Windows Server, Linux and VMware, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9740P to be integrated into the system.

4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter (120W PoE budget, PCIe x4, -10 to 60 C, Intel Ethernet Controller)
