Planet FGSD-1022HP 8 PoE Port Network Switch

Discontinued.

Planet FNSW-1022HP Features

Hardware Specifications

• Ethernet Ports: 8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports, 2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, 2 1000Base-SX/LX/BX, shared with Port-9~Port-10
• PoE Ports: 8
• Switch Throughput: 4.16Mpps @64Bytes
• Switch Architecture: Store and Forward switch architecture
• Power Requirement: AC 100~240V, 50/60Hz,
• Power Consumption: 200W / 686.2BTU
• Auto Detect: Yes, Auto detect powered device (PD)
• LED Display: 10/100 PoE Port : Link/Activity (Green), PoE In-Use (Amber), Gigabit Port: 1000 LNK / ACT(Green), 10/100 LNK / ACT(Amber)
• Dimension (W x D x H): 330 x 155 x 43.5mm
• Weight: 1.74Kg
• Operating Temperature: 0 ~ 50 Degree C with 20% ~ 95%, relative humidity, non-condensing
• Warranty: 3 Year Warranty

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 56V DC, 350mA . Max. 15.4 Watts (IEEE 802.3af) or Per Port 56V DC, 590mA. Max. 30 Watts (IEEE 802.3at)
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 150 Watts, Supports PoE Power up to 15.4 Watts for each PoE port
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3　10Base-T, IEEE 802.3u　100Base-TX, IEEE 802.3ab　1000Base-T, IEEE 802.3z　1000Base-SX/LX, IEEE 802.3x Flow Control and Back pressure, IEEE 802.3ad　Port trunk with LACP, IEEE 802.1D　Spanning tree protocol, IEEE 802.1s　Multiple spanning tree protocol, IEEE 802.1p　Class of service, IEEE 802.1Q　VLAN Tagging, IEEE 802.1x　Port Authentication Network Control, IEEE 802.3af　Power over Ethernet

Planet FNSW-1022HP Overview

High Power PoE for Security and Public Service PoE Applications

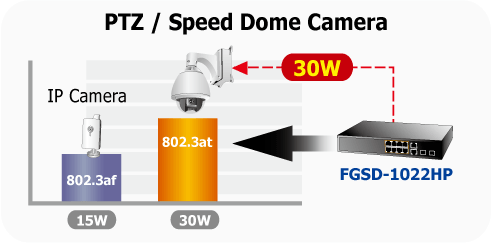

PLANET FGSD-1022HP, the next generation Managed PoE Switch, features IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 watts power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a / b / g / n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.

Flexible and Centralized Power Management
The 8 PoE ports in the FGSD-1022HP support both 802.3af and 802.3at PoE standards and allows users flexibly connect standard and high powered devices simultaneously. By offering 150 watts PoE budget, eight 15.4 watts IEEE 802.3af devices or five 30 watts IEEE 802.3at devices can be easily installed without the power-socket limitation. To facilitate power management, the FGSD-1022HP is implemented powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocate to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold. The FGSD-1022HP enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time.

IEEE 802.3at Power over Ethernet Pre-Standard Compliant
Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications appears, the IEEE 802.3af PoE standard may not afford the trend of higher power demand. Hence, the IEEE 802.3at Power over Ethernet pre-standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at Power over Ethernet pre-standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the FGSD-1022HP possesses stronger power capability than the existing 802.3af PoE Switch.

Full-Functioned / Robust Layer 2 Features
The FGSD-1022HP can be programmed for basic switch management functions such as port speed configuration, Port aggregation, VLAN, Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. It provides IEEE 802.1Q Tagged VLAN and the VLAN groups allowed on the FGSD-1022HP will be maximally up to 256. Via aggregation of supporting port, the FGSD-1022HP allows the operation of high-speed trunk combining multiple ports and supports fail-over as well. In addition, SNTP, System log and Remote syslog provide alarm event record to the administrator for security monitoring.

Excellent Traffic Control
The PLANET FGSD-1022HP is loaded with powerful traffic management and QoS features to enhance services offered by Service Providers. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting applications that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Powerful Management and Easy To Use
For efficient management, the FGSD-1022HP is equipped with console, WEB and SNMP management interfaces. With its built-in Web-Based management interface, the FGSD-1022HP offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the FGSD-1022HP can be accessed via Telnet and the console port. It supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the FGSD-1022HP offers secure remote management by supporting SNMPv3 and SSL connection which encrypts the packet content at each session.

Powerful Security
The PLANET FGSD-1022HP offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanism also comprises Port-Based IEEE 802.1x user and device authentication. The Port-security is effective in limiting the numbers of clients pass through so that network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension solution
The two mini-GBIC slots are compatible with 1000Base-SX/LX and WDM SFP (Small Form Factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (Multi-Mode fiber cable) up to 10/30/50/70/120 kilometers (Single-Mode fiber or WDM fiber cable). They are well suited for applications within the enterprises data centers, distributions or remote PoE equipments data link.
