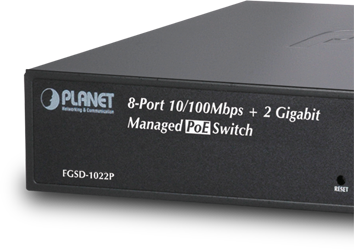

Planet FGSD-1022P 8 PoE Port Network Switch
Planet FGSD-1022P 8 PoE Port Network Switch


Planet FGSD-1022P 8 PoE Port Network Switch

Sale price$245.00

Usually Ships in 10 - 12 days


Planet FGSD-1022P Features

Hardware Specifications

  • Ethernet Ports: 8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports, 2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, 2 1000Base-SX/LX/BX, shared with Port-9~Port-10
  • PoE Ports: 8
  • Switch Throughput: 4.16Mpps @64Bytes
  • Switch Architecture: Store and Forward
  • Power Requirement: AC 100~240V, 50/60Hz,
  • Power Consumption: 200 Watts / 58.6 BTU
  • Auto Detect: Yes, Auto detect powered device (PD)
  • LED Display: Power (Green), Link / Activity (Green), PoE In-Use (Orange), 1000 LNK / ACT(Green), 10/100 LNK / ACT(Orange)
  • Dimension (W x D x H): 330 x 155 x 43.5mm
  • Weight: 1.63kg
  • Operating Temperature: 0 ~ 50 Degree C with 20% ~ 95%, relative humidity, non-condensing
  • Warranty: 3 Year Warranty

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af Power over Ethernet / PSE
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 Watts
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 180 Watts, Supports PoE Power up to 15.4 Watts for each PoE port
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x Flow Control and Back pressure, IEEE 802.3ad Port trunk with LACP, IEEE 802.1D Spanning tree protocol, IEEE 802.1s Multiple spanning tree protocol, IEEE 802.1p Class of service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.3af Power over Ethernet

Planet FGSD-1022P Overview

Advanced Features and Centralized Power Management for SMB and Public Service PoE Networking
The PLANET FGSD-1022P PoE Switch features IEEE 802.3af Power over Ethernet (PoE) function, which optimizes the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and security video cameras. IEEE 802.3af PoE helps to reduce installation costs of add-in network productivity devices. It frees the wireless AP deployment from restrictions of power outlet locations. With PoE features, power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

Full-Functioned / Robust Layer2 Features
The FGSD-1022P can be programmed for basic switch management functions such as port speed configuration, Port aggregation, VLAN, Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. It provides IEEE 802.1Q Tagged VLAN and the VLAN groups allowed on the FGSD-1022P will be maximally up to 256. Via aggregation of supporting port, the FGSD-1022P allows the operation of high-speed trunk combining multiple ports. Maximum up to 8 ports can be assigned for 13 trunk groups and it supports fail-over as well.

• 802.1Q VLAN

• IGMP Snooping

• Access Control List



• SNMP and SNMP Trap

• DHCP Relay & DHCP Option 82

• 802.3af Power over Ethernet

• 802.1X Authentication / RADIUS

• 802.1s Multiple Spanning Tree

Full PoE Power Switch for Centralize Power Management
Provides 8 PoE in-line power interface, the FGSD-1022P PoE Managed Switch offers totally 180Watts for 8 PoE port and it can easily build a power central-controlled IP phone system, IP Camera system, or wireless AP group for the enterprises. For instance, 8 IP cameras or APs can be easily installed in the company for surveillance demands or build a wireless roaming environment in the office. Without the power-socket limitation, the PoE Switch makes the installation of cameras or WLAN AP more easily and efficiently.

Excellent Traffic Control
The PLANET FGSD-1022P is loaded with powerful traffic management and QoS features to enhance services offered by Service Providers. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting applications that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Powerful Management and Easy To Use
For efficient management, the FGSD-1022P is equipped with console, WEB and SNMP management interfaces. With its built-in Web-based management interface, the FGSD-1022P offers an easy-to-use, platform-independent management and configuration facility. It supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the FGSD-1022P can be accessed via Telnet and the console port. Moreover, the FGSD-1022P offers secure remote management by supporting SSL connection which encrypts the packet content at each session.

Powerful Security
The PLANET FGSD-1022P offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanism also comprises Port-based IEEE 802.1x user, Web Authentication user and device authentication. The Port-security is effective in limiting the numbers of clients pass through so that network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension solution
The two mini-GBIC slots are compatible with 1000Base-SX/LX and WDM SFP (Small Form Factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (Multi-Mode fiber cable) up to 10/30/50/70/120 kilometers (Single-Mode fiber or WDM fiber cable). They are well suited for applications within the enterprises data centers, distributions or remote PoE equipments data link.
