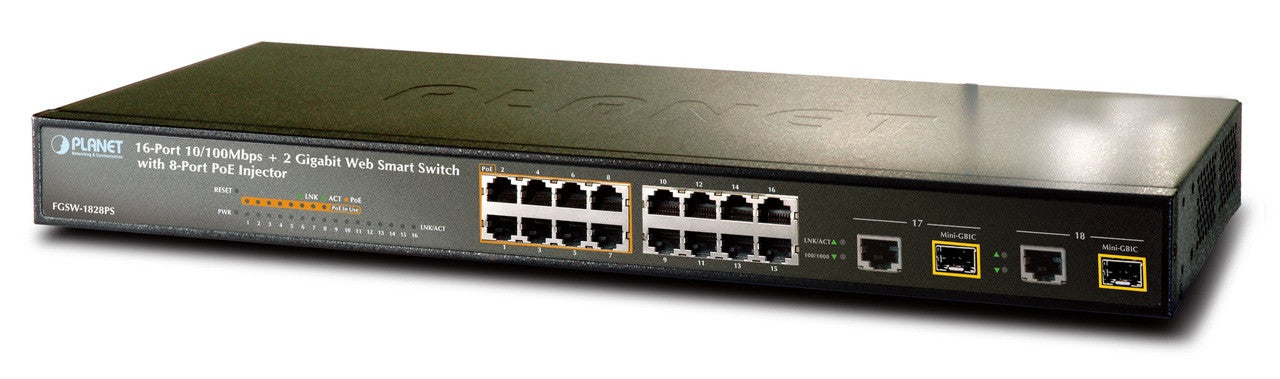

Planet FGSW-1828PS 24-Port PoE Web Smart Ethernet Switch
Planet FGSW-1828PS 24-Port PoE Web Smart Ethernet Switch


Planet FGSW-1828PS 24-Port PoE Web Smart Ethernet Switch

Sale price$200.00

Usually Ships in 10 - 12 days


Planet FGSW-1828PS Key Features

Hardware Specifications

  • Ethernet Ports: 16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports
  • PoE Ports: 8-Port with PoE injector function (Port 1 to port 8)
  • Switch Throughput: 5.35Mpps per second
  • Power Requirement: 100-240V AC, 50-60 Hz, 1A
  • Power Consumption: 131 watts / 446.71BTU
  • Dimension (W x D x H): 440 x 120 x 44 mm
  • Weight: 2.02 kg
  • Operating Temperature: 0~50 degree C, 5% to 90% (Non-condensing)

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af Power over Ethernet / PSE
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 110 watts
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fst Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Full-duplex Flow control, IEEE 802.3af Power over Ethernet, IEEE 802.1Q VLAN, IEEE 802.1p QoS

Planet FGSW-1828PS Overview

For cost saving and outlet saving purpose, PLANET releases the new Layer 2 Web Smart Switch with built-in PoE injector function, FGSW-1828PS. Except the Switch architecture designed, the FGSW-1828PS also comply with IEEE 802.3af Power over Ethernet standard and provide PoE power provision feature, the FGSW-1828PS can provide PoE power to 8 IEEE 802.3af compliant devices.

The FGSW-1828PS provide 16 10/100Mbps Fast Ethernet ports with 8 PoE interfaces, the FGSW-1828PS supports MDI / MDI-X convertible on 16-10/100Mbps ports and also provide PoE inject function on port #1 to port #8 which is able to drive 8 IEEE 802.3af compliant powered devices, the FGSW-1828PS also provide two Gigabit Ethernet ports, either TP or SFP per port. The two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interfaces. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (Single-mode fiber).

With its Auto-Negotiation capability, all the RJ-45 / STP ports of FGSW-1828PS Switch can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) or1000/2000Mbps (Gigabit Ethernet) automatically. In addition, the product are equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types-straight through or crossover, the FGSW-1828PS also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks, this device is ideal for all kind of the Ethernet installation, such as campus / workgroup / department / enterprise / telecom / industrial application.

The FGSW-1828PS equipped with non-blocking 7.2Gbps backplane, greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands. For efficient management, the FGSW-1828PS Switch is equipped with remote Web interface and can be programmed for advanced switch management functions such as SNMP Alert Trap, port configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, MAC address / TCP & UDP filter and IGMP Snooping v1/v2. Also the PoE Setting, such as PoE power Disable/Enable and PoE power consumption monitoring.
