Planet FGSW-2624HPS

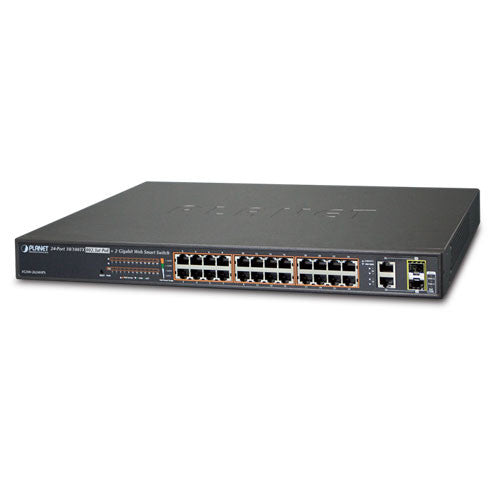

Planet FGSW-2624HPS 24 Port Web Smart Gigabit PoE Network Switch (220W)

Planet

Planet FGSW-2624HPS 24 Port Web Smart Gigabit PoE Network Switch (220W)

$332.00
SKU: FGSW-2624HPS

Usually Ships in 10 - 12 days

Quantity:
Link to Manufacturer's Page

Contact

Planet FGSW-2624HPS Features

Hardware Specifications

  • Ethernet Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports, 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
  • PoE Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
  • Switch Throughput: 6.54Mpps @64 bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: N/A
  • Power Consumption: Max. 297 watts / 1013.4 BTU
  • LED Display: System:
    Power (Green)
    10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24):
    10/100Mbps LNK/ACT (Green)
    PoE-in-Use (Orange)
    10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26):
    LNK/ACT (Green)
    100/1000 (Green)
    PoE Usage
    50W, 100W, 150W, 190W (Orange)
  • Dimension (W x D x H): 440 x 300 x 44.5 mm, 1000 1U height
  • Weight: 4142 g (9.13 lb)
  • Operating Temperature: 0 ~ 50 degrees C; 5 ~ 95% RH (non-condensing)

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af / 802.3at PoE / PSE
  • PoE Power Supply Type: End-span
  • PoE Power Output: Per port 52V DC, 30.8 watts (max.)
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 220 watts (max.) @ 25 degrees C, 190 watts (max.) @ 50 degrees C
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: See datasheet

Planet FGSW-2624HPS Overview

Particularly designed for the growing popular IP surveillance applications, PLANET FGSW-2624HPS / FGSW-2624HPS4 802.3at PoE web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-2624HPS / FGSW-2624HPS4 provides PoE functions along with 24 10/100BASE-TX ports featuring 30-watt 802.3at PoE+ with RJ45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. With a total power budget of up to 220 watts and 420 watts for different kinds of PoE applications, respectively, the FGSW-2624HPS and FGSW-2624HPS4 provide a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
