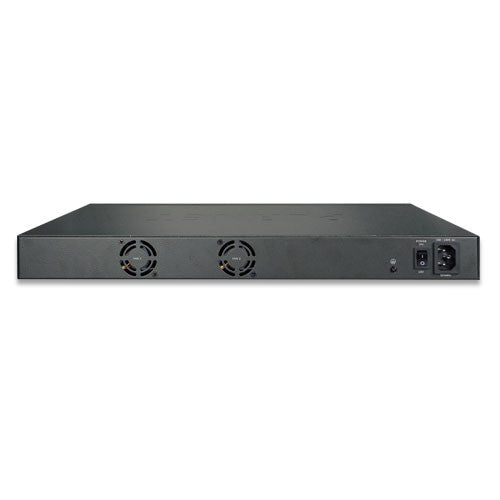

Planet FGSW-2624HPS4 24 Port Web Smart Gigabit PoE Network Switch (420W)

Planet

Planet FGSW-2624HPS4 24 Port Web Smart Gigabit PoE Network Switch (420W)

$358.00
SKU: FGSW-2624HPS4

Usually Ships in 10 - 12 days

Quantity:
Link to Manufacturer's Page

Contact

Planet FGSW-2624HPS4 Features

Hardware Specifications
10/100Mbps Copper Ports 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Copper Ports 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
Switch Architecture Store-and-Forward
Switch Fabric 8.8Gbps / non-blocking
Throughput 6.54Mpps@64Bytes
Address Table 4K entries, automatic source address learning and ageing
Shared Data Buffer 2.75Mb embedded memory for packet buffers
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Maximum Transmit Unit 1518 Bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
Weight FGSW-2624HPS: 4142g
FGSW-2624HPS4: 4566g
Power Consumption FGSW-2624HPS: Max. 297 watts / 1013.4 BTU
FGSW-2624HPS4: Max. 513 watts / 1750.4 BTU
ESD Protection Contact Discharge 4KV DC
Air Discharge 8KV DC
LED FGSW-2624HPS:
System:
Power (Green)
10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24):
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26):
LNK/ACT (Green)
100/1000 (Green)
PoE Usage
50W, 100W, 150W, 190W (Orange)

FGSW-2624HPS4:
System:
Power (Green)
10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24):
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26):
LNK/ACT (Green)
100/1000 (Green)
PoE Usage
100W, 200W, 300W, 400W (Orange)
Cable Twisted-pair:
■ 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters
■ 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters
■ 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters

Fiber-optic Cable:
■ 1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber-optic cable, up to 550m (varying on SFP module)
■ 1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module)
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output FGSW-2624HPS: Per Port 52V DC, Max. 30.8 watts
FGSW-2624HPS4: Per Port 54V DC, Max. 30.8 watts
PoE Power Budget FGSW-2624HPS:
■ 220 watts (max.) @ 25 degrees C
■ 190 watts (max.) @ 50 degrees C
FGSW-2624HPS4:
■ 420 watts (max.) @ 25 degrees C
■ 420 watts (max.) @ 50 degrees C
PoE Ability FGSW-2624HPS:
■ PD @ 7 watts: 24 units
■ PD @ 15.4 watts: 14 units
■ PD @ 30 watts: 7 units
FGSW-2624HPS4:
■ PD @ 7 watts: 24 units
■ PD @ 15.4 watts: 24 units
■ PD @ 30 watts: 14 units
Layer 2 Functions
Port Configuration Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs
Port-based VLAN, up to 26 VLAN groups
MTU VLAN
Link Aggregation 1 group of 2-Port 10/100/1000BASE-T trunk supported
QoS Allows to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
IGMP Snooping IGMP (v1 / v2) Snooping, up to 32 multicast groups
Without Query supported
Security Control MAC address binding
TCP & UDP filter
Management Functions
Basic Management Interfaces Web browser, SNMP v1
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber-Optic
IEEE 802.3x Full-duplex flow control
IEEE 802.1Q VLAN
IEEE 802.1p QoS
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Planet FGSW-2624HPS4 Overview

Cost-effective PoE+ Managed Switch for Small and Medium Networking
Particularly designed for the growing popular IP surveillance applications, PLANET FGSW-2624HPS / FGSW-2624HPS4 802.3at PoE web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-2624HPS / FGSW-2624HPS4 provides PoE functions along with 24 10/100BASE-TX ports featuring 30-watt 802.3at PoE+ with RJ45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. With a total power budget of up to 220 watts and 420 watts for different kinds of PoE applications, respectively, the FGSW-2624HPS and FGSW-2624HPS4 provide a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Centralized Power Management for Security and Public Service PoE Applications
To fulfill the needs of the high power consumption of PoE network applications, the FGSW-2624HPS / FGSW-2624HPS4 features the standard IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 30 watts of power output and data per port over one cat5E/6 Ethernet cable. It is designed specifically to meet the demand of the high power consumption of network PDs (powered devices) such as IR, PTZ, speed dome cameras; and even box-type IP cameras with built-in fan and heater. Compliant with both 802.3at and 802.3af standards, the series allows more flexibility in power requirement for a variety of PDs, making installation costs affordable.

Intelligent LED Indicator for Real-time PoE Usage
The FGSW-2624HPS / FGSW-2624HPS4 helps users to monitor the current status of PoE power usage easily and efficiently with its advanced LED indication. Called “PoE Power Usage” found on the front panel of the FGSW-2624HPS / FGSW-2624HPS4 Fast Ethernet PoE+ Switch, it has four orange LEDs indicating the range of the current PoE power usage.

Robust Layer 2 Features
The FGSW-2624HPS / FGSW-2624HPS4 can be programmed for advanced switch management functions such as dynamic port link aggregation (LACP), Spanning Tree Protocol (STP), IGMP Snooping v1, v2, bandwidth control and L2/L4 security control. The FGSW-2624HPS / FGSW-2624HPS4 provides IEEE 802.1Q tagged VLAN, port-based VLAN and MTU VLAN. The VLAN groups allowed will be maximally up to 32. Via aggregation of supporting ports, the FGSW-2624HPS / FGSW-2624HPS4 allows the operation of a high-speed trunk combining multiple ports and supports fail-over as well.

Remote and Centralized Management
For catering to the need of easy management and centralized SNMP application to monitor the status of the switch and traffic per port, the FGSW-2624HPS / FGSW-2624HPS4 provides friendly Web management interface for efficient network operation. With its built-in Web-based management, the FGSW-2624HPS / FGSW-2624HPS4 offers an easy-to-use, platform-independent management and configuration facility. It also supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software.
