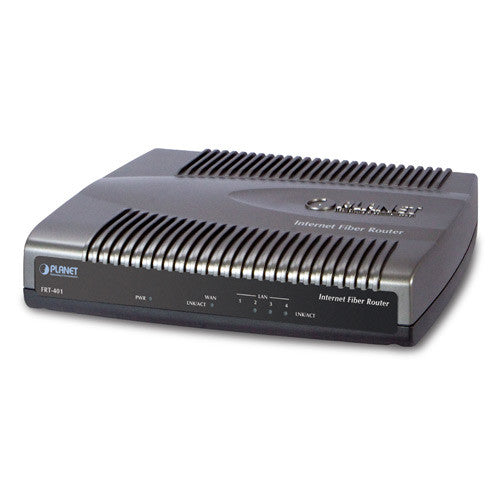

Planet FRT-401 Advance Ethernet Home Router with Fiber Optic uplink
Usually Ships in 10 - 12 days
With growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for bandwidth rises quickly. The current broadband environment has not reached its requirements. Rather, the FTTH (fiber-to-the-home) would be the most promising NGN (Next Generation Networking) application to fulfill the demand.
PLANET Internet Fiber Router, FRT-40x series, provides office and residential users with the ideal solution for sharing a high-speed fiber Internet connection and four 10/100Mbps Fast Ethernet backbone. The FRT-40x series is a perfect FTTH Digital Home Router which can provide very high performance access to Internet, both downstream and upstream up to 100Mbps through the fiber interface. For the WAN connection, the FRT-40x series supports several common optical connectors including 100Base-BX, 100Base-LX, 100Base-FX and Small Form Factor Pluggable (SFP). The Fiber Router can be implemented easily for optical fiber deployment.
The FRT-40x series provides QoS functions to enable smooth network services. Traffic priority can be assigned by the router to guarantee some important and specific transmissions, especially for real-time streaming multimedia applications such as the on-line gaming, VoIP, and IPTV to keep the bandwidth usage smoothly. Furthermore, the FRT-40x Fiber Router series not only provides basic router functions like DHCP server, Virtual Server, DMZ, and UPnP, but also features full firewall functions including Network Address Translation (NAT), IP / Port / MAC Filtering and Content Filtering. It serves as an Internet firewall to protect your network from being accessed by unauthorized users.
| Product | |
|---|---|
| Ports |
WAN 1 x 100Base-FX port LAN 4 x 10/100Base-TX port |
| Optic Interface |
Connector FRT-401: SC FRT-401S15: SC FRT-405: SFP Mode FRT-401: Multi-mode FRT-401S15: Single-mode FRT-405: Vary on module Distance FRT-401: 2km FRT-401S15: 15km FRT-405: Varies on module |
| Optic Wavelength | FRT-401: 850nm FRT-401S15: 1310nm |
| Launch Power(dBm) |
Max. FRT-401: -14 FRT-401S15: -7 Min. FRT-401: -19.0 FRT-401S15: -20 |
| Receive Sensitivity | FRT-401: -34.5 FRT-401S15: -28 |
| Maximum Input Power | FRT-401: -14 FRT-401S15: -8 |
| Fiber-optic Cable | • 50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km. • 9/125μm single-mode cable, provide long distance for 15/20/35/50km or longer (varies on SFP module) |
| LED Indicators | PWR, Fiber, LAN1-4 |
| Button | 1 x reset button |
| Software | |
| Max. Sessions | 4096 |
| Protocol / Feature | Router and Bridge mode Static Routing and RIPv1/2 DMZ and Virtual Server 802.1D 802.1Q VLAN support QoS SNTP DHCP Server / Client IGMP Proxy and DNS Proxy Universal Plug and Play (UPnP) Compliant DDNS (Dynamic Domain Name System) |
| VPN | VPN Pass-through |
| Security | Built-in NAT Firewall MAC / IP/ Port Filtering Content Filtering SPI Firewall support Password protection for system management |
| Management | Web-Based configuration Available Syslog support TR-069* SNMP v1/v2c TS-1000 and 802.3ah OAM support |
| Environment Specifications | |
| Dimensions (W x D x H) | 186 x 143 x 35mm |
| Power | 12V DC, 1A |
| Temperature / Humidity | Operating: 0~50 degrees C, 5~90% (non-condensing) Storage: -10~70 degrees C, 0~95% (non-condensing) |
| Emission | FCC, CE |
Advance Ethernet Home Router with Fiber Optic uplink (SC Mutlimode)
With growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for bandwidth rises quickly. The current broadband environment has not reached its requirements. Rather, the FTTH (fiber-to-the-home) would be the most promising NGN (Next Generation Networking) application to fulfill the demand.
PLANET Internet Fiber Router, FRT-40x series, provides office and residential users with the ideal solution for sharing a high-speed fiber Internet connection and four 10/100Mbps Fast Ethernet backbone. The FRT-40x series is a perfect FTTH Digital Home Router which can provide very high performance access to Internet, both downstream and upstream up to 100Mbps through the fiber interface. For the WAN connection, the FRT-40x series supports several common optical connectors including 100Base-BX, 100Base-LX, 100Base-FX and Small Form Factor Pluggable (SFP). The Fiber Router can be implemented easily for optical fiber deployment.
The FRT-40x series provides QoS functions to enable smooth network services. Traffic priority can be assigned by the router to guarantee some important and specific transmissions, especially for real-time streaming multimedia applications such as the on-line gaming, VoIP, and IPTV to keep the bandwidth usage smoothly. Furthermore, the FRT-40x Fiber Router series not only provides basic router functions like DHCP server, Virtual Server, DMZ, and UPnP, but also features full firewall functions including Network Address Translation (NAT), IP / Port / MAC Filtering and Content Filtering. It serves as an Internet firewall to protect your network from being accessed by unauthorized users.
