Planet FSD-504HP Features

Hardware Specifications

• Ethernet Ports: 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX
• PoE Ports: 4 ports with 802.3at / af PoE injector function (port 2 to port 5)
• Switch Throughput: 0.74Mpps @ 64Bytes
• Switch Architecture: Store and Forward switch architecture
• Power Requirement: DC 48V, 1.5A.
• Power Consumption: Max.62 watts / 211.5 BTU
• LED Display: System: Power (Green); Per PoE port: PoE (Orange, port 2 to port 5); LNK/ACT (Green, port 1 to port 5)
• Dimension (W x D x H): 90 x 80 x 21 mm
• Weight: 172 g (.38 lbs)
• Operating Temperature: 0 ~ 50 Degree C with 5 ~ 95%, Relative Humidity, non-condensing

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / PSE; IEEE 802.3at Power over Ethernet Plus / PSE
• PoE Power Supply Type: Mid-Span
• PoE Power Output: Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af); Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at)
• Power Pin Assignments: 4/5(+), 7/8(-)
• PoE Power Budget: 60 watts
• Regulation Compliance: FCC Class A, CE
• Standards Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at:High Power over Ethernet

Planet FSD-504HP Overview

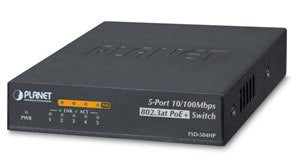

With compact, easy and quick deployment for SOHO / home-use PoE application environment, PLANET has released the FSD-504HP, a brand-new desktop size 802.3at / af PoE Switch. The FSD-504HP’s advanced features are as follows: 4-port PoE, 60-watt PoE budget, one 10/100Mbps uplink port, compact desktop palm size design. The FSD-504HP is a 4-port 10/100Mbps 802.3at/af Power over Ethernet + 1-port Fast Ethernet Switchwith a total PoE budget of 60 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3at / af PoE ports provide PoE power injector function which is able to drive 2 IEEE 802.3at compliant powered devices or 4 IEEE 802.3af compliant powered devices. The FSD-504HP also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a compact palm size metal housing, suitable for the desktop deployment of SOHO or home-use network environment. Targeting the growing popular IP surveillance applications, the FSD-504HP 802.3at / af PoE Switch is also positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding.The FSD-504HP supports both 802.3at and 802.3af PoE standards along with 4 10/100Base-TX ports featuring up to 30 watts per RJ-45 copper interface, and 1 extra Fast Ethernet TP interface supporting high speed transmission of surveillance images and videos. With data switching and power over Ethernet integrated into one unit, the FSD-504HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 4 PoE interfaces, the FSD-504HP is ideal for small businesses and workgroups making the deployment of the PoE facility including wireless access points, IP-based surveillance camera and IP phones in any places easier, more efficient and more cost-effective.
