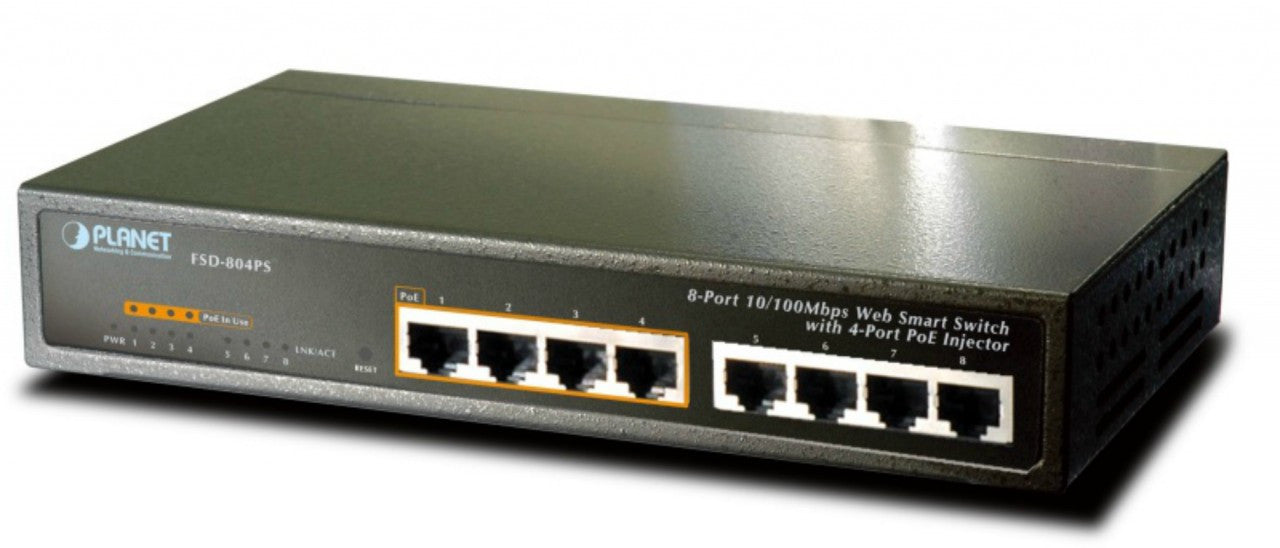

Planet FSD-804P PoE Switch

Planet FSD-804P Key Features

Hardware Specifications

• Ethernet Ports: 8-Port RJ-45 for 10/100Base-TX
• PoE Ports: 4-Port with PoE injector function, Port-1 to Port-4
• Switch Throughput: 1.19Mpps
• Switch Architecture: Store and Forward
• Power Requirement: AC 100~240V, 50/60Hz
• Power Consumption: Max. 65 watts / 221 BTU
• LED Display: One power, 1-4 port PoE in-use, LNK / ACT, 1-8 port LNK / ACT
• Dimension (W x D x H): 217 x 135 x 43 mm
• Weight: 1.0 kg
• Operating Temperature: 0~50 degree C

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 48V DC, 350mA . Max. 15.4 watts
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 55 watts
• Standards Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet

Planet FSD-804P Overview

Cost effective centralized power distribution
For cost saving and flexible using of PoE power provision, half of the 10/100Mbps TP ports of FSD-804P provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices.
For SOHO or department network, the Switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging Ethernet to Fast Ethernet workgroups or networks.

Easy Cabling Installation
With data and power over Ethernet from one unit, the FSD-804P shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. We are also proud of the key feature – energy saving. With more efficient switching power supply, the efficiency of the FSD-804P would be much better than four linear power adapters in a long run.
Providing 4 PoE interfaces, the FSD-804P is ideal for small business and workgroups requiring to deploy the PoE for the wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost effective.

Ordering Information
FSD-804P 8-Port 10/100Mbps with 4-Port PoE Switch

Accessories
RKE-10A PLANET 10” Desktop Switch to 10-inch Rack Mount Kits
RKE-10B PLANET 10” Desktop Switch to 19-inch Rack Mount Kits
