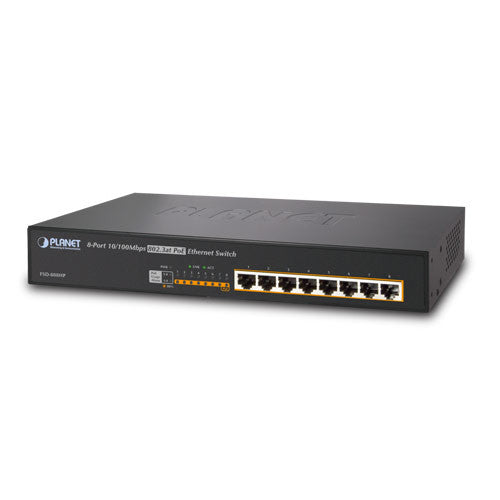

Planet FSD-808HP PoE Switch

Planet FSD-808HP Key Features

Hardware Specifications

• Ethernet Ports: 8-Port RJ-45 for 10/100Base-TX
• PoE Ports: 8-Port with 802.3af / 802.3at PoE injector function
• Switch Throughput: 1.19Mpps@64Bytes
• Switch Architecture: Store and Forward switch architecture
• Power Requirement: AC 100~240V, 50/60Hz, 2A max.
• Power Consumption: Max.150 Watts / 511 BTU
• LED Display: System: Power (Green), Per port : PoE (Green), LNK/ACT (Green)
• Dimension (W x D x H): 280 x 180 x 44 mm
• Weight: 1.65kg
• Operating Temperature: 0 ~ 50 Degree C

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / PSE; IEEE 802.3at Enhancement Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 52V DC Max. 30.8 Watts
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 140 Watts
• Regulation Compliance: FCC Class B, CE
• Standards Compliance: IEEE 802.3　Ethernet; IEEE 802.3u　Fast Ethernet; IEEE 802.3x　Flow Control; IEEE 802.3af　Power over Ethernet; IEEE 802.3at　Enhancement Power over Ethernet; IEEE 802.3az　Energy-Efficient Ethernet

Planet FSD-808HP Overview

High Power PoE for Security and Public Service Applications

To fulfill the demand of High Power PoE for network applications with Fast Ethernet speed transmission, the PLANET 802.3at PoE Fast Ethernet Switch - FSD-808HP is an ideal solution. Each 10/100Mbps port of the FSD-808HP features IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 140 Watts power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 140 Watts PoE budget on whole system, the FSD-808HP is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.

Intelligent PoE Management

To facilitate power management, the FSD-808HP implements powerful PoE intelligent features:

　■ PoE Power Usage Display

The FSD-808HP helps users to monitor current status of PoE power usage easily and efficiently by its intelligent PoE Management feature of LED indication, There are two orange LEDs named “PoE Power Usage” located on left side of the FSD-808HP front panel. Of which, one LED indicates the total power output of Port 1-4 and the other LED shows the total power output of Port 5-8. When Port 1-4 or 5-8 PoE output is over 80%, the LED will be lighted up, when Port 1-4 or 5-8 PoE output is over 95%, the LED will Blink to notify customers for better PoE allocation.

Energy-Saving Green Design

The FSD-808HP uses new engine that incorporates one advanced Green Networking technology:

　■ Idle Mode Link Down power saving

The Idle mode Link Down power saving of the FSD-808HP complies with IEEE 802.3az Energy-Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is idled.

Easy Installation

Providing data transfer and High Power PoE function in one unit, the FSD-808HP shall reduce the need of extension cables and dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort.

All RJ-45 copper interfaces in the FSD-808HP support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
