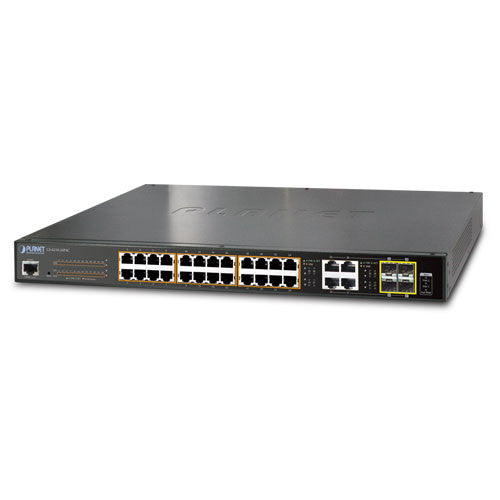

Planet GS-4210-24P4C 24 Port Managed Gigabit PoE Network Switch

Planet GS-4210-24P4C Features

Hardware Specifications

• Ethernet Ports: 28 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X port, 28 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X port supports 100/1000Mbps dual mode and DDM
• PoE Ports: 24-Port with 802.3af/802.3at PoE injector function (ports 1-24)
• Switch Throughput: 41.67Mpps @64 bytes
• Switch Architecture: Store and Forward switch architecture
• Power Requirement: AC 100~240V, 50/60Hz, auto-sensing
• Power Consumption: 275 watts (max.) / 938.3 BTU
• LED Display: PWR, SYS, LNK/ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert
• Dimension (W x D x H): 440 x 330 x 44.5 mm, 1U height
• Weight: 4214 g (9.29 lb)
• Operating Temperature: 0 ~ 50 degrees C; 5 ~ 95% RH (non-condensing)

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af/802.3at Power over Ethernet + PSE
• PoE Power Supply Type: end-span

• PoE Power Output: Per port 52V DC, 30.8 watts (max.)
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 220 watts (max.) @ 25 degrees C; 190 watts (max.) @ 50 degrees C
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: See datasheet

Planet GS-4210-24P4C Overview

The GS-4210-24P4C is a new generation of PLANET managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+ and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 220 watts and 440 watts for different kinds of PoE applications, respectively, the GS-4210-24P4C provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
