Planet GS-4210-48P4S

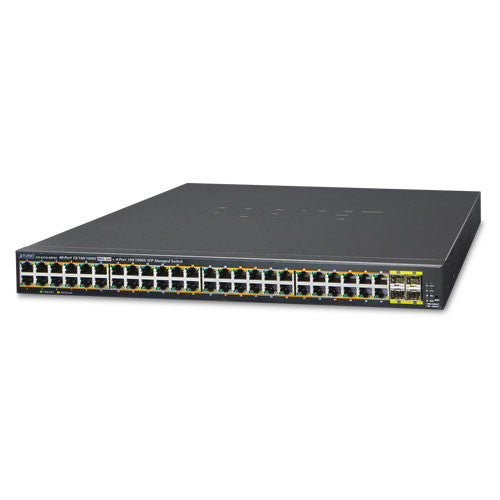

Planet GS-4210-48P4S 48 Port Managed Gigabit PoE Network Switch

Planet

Planet GS-4210-48P4S 48 Port Managed Gigabit PoE Network Switch

Sale price$1,195.00
SKU: GS-4210-48P4S

Usually Ships in 10 - 12 days

Quantity:

Contact

Planet GS-4210-48P4S Features

Hardware Specifications

  • Ethernet Ports: 48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port, 4 x 100/1000BASE-X SFP interface supports 100/1000Mbps dual mode and DDM
  • PoE Ports: 48 ports with 802.3at/af PoE injector function with port-1 to port-48
  • Switch Throughput: 77.38Mpps @64 bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: AC 100~240V, 50/60Hz, auto-sensing
  • Power Consumption: 481 watts (max.)/1641 BTU
  • LED Display: System:
    PWR (Power) (Green)
    SYS (System) (Green)
    10/100/1000T RJ45 Interfaces (Port 1 to Port 48):
    10/100/1000Mbps, LNK/ACT (Green)
    PoE-in-Use (Orange)
    100/1000Mbps SFP Interfaces (Port 49 to Port 52):
    1000Mbps, LNK/ACT (Green)
    100Mbps, LNK/ACT (Orange)
  • Dimension (W x D x H): 440 x 300 x 44.5 mm, 1U height
  • Weight: 5486 g (12.07 lb)
  • Operating Temperature: 0 ~ 50 degrees C; 5 ~ 95% RH (non-condensing)

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af / 802.3at PoE+ PSE
  • PoE Power Supply Type: End-span
  • PoE Power Output: Per port 52V DC, 36 watts (max.)
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 440 watts (max.)@ 25 degrees C
  • Regulation Compliance: FCC Part 15 Class A, CE, LVD
  • Standards Compliance: See datasheet

Planet GS-4210-48P4S Overview

PLANET GS-4210-48P4S is a cost-optimized, high-density PoE+ Managed Gigabit Ethernet Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 48 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 additional Gigabit SFP slots. With a total power budget of up to 440 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
