Planet GSD-1222VHP 8-Port 10/100/1000T 802.3at PoE

Features

Physical Port

• 8-port 10/100/1000BASE-T Gigabit RJ45 copper
• 2 1000BASE-X mini-GBIC SFP interfaces
• 2 10/100/1000BASE-T TP interfaces

Power over Ethernet

• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 32 watts for each PoE port
• Each port supports 54V DC power to PoE powered device
• 120-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m in standard mode and 250m in extend mode

Smart LCD

• The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
• The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
• Power low-voltage, power over-voltage and PSE over-temperature protection
• Screen saver, fan control, factory default and save configuration
• PoE management
  - Total PoE power budget control
  - Per port PoE function enable/disable
  - PoE port power feeding priority
  - Per PoE port power limitation
  - PD alive check

Switching

• Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• 9216bytes packet size
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• IEEE 802.1Q VLAN transparency
• Automatic address learning and address aging

Hardware

• 12-inch desktop size, 1U height, rack mountable
• 2-inch color LCD with smart management functions
• LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act

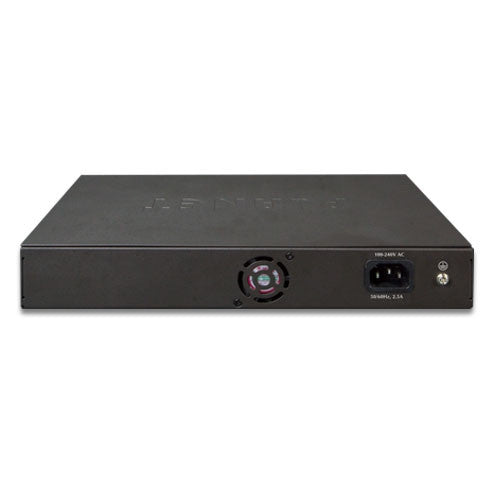

• 1 silent fan to provide stable and efficient power performance
• Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
• Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
• Supports ±6KV surge immunity

Overview

PLANET GSD-1222VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

PLANET GSD-1022VHP is equipped with 8 10/100/1000BASE-T ports with each port taking up 30 watts of PoE+ power, and 2 Gigabit TP and 2 Gigabit SFP interfaces with inner power system. With a total PoE+ power budget of 120 watts and non-blocking data switching performance, the GSD-1222VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.
