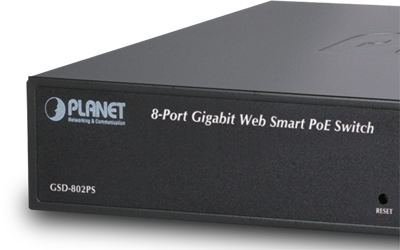

Planet GSD-802PS PoE Switch

Discontinued; replaced by the GS-4210-8P2S.

Planet GSD-802PS Features

Hardware Specifications

• Ethernet Ports: 8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
• PoE Ports: 8
• Switch Throughput: 11.9Mpps
• Switch Architecture: Store-and-forward
• Power Requirement: 100 - 240VAC, 50 – 60Hz, Auto-sensing
• Power Consumption: 8.7 watts / 27.31 BTU
• LED Display: Power, 1000 Link/Act, 100/10 Link/Act per port
• Dimension (W x D x H): 217 x 135 x 43.5 mm
• Weight: 1.1kg
• Operating Temperature: 0~50 Degree C, 5~95%(non-condensing)

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 52V DC, 275mA. Max. 15.4 Watts (IEEE 802.3af); Per Port 52V DC, 535mA. Max. 30 Watts (IEEE 802.3at)
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 130 Watts
• Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000-T, IEEE 802.3z Gigabit SX / LX, IEEE 802.3x Flow Control, IEEE 802.3ad Port trunk with LACP, IEEE 802.1d Spanning tree protocol, IEEE 802.1w Rapid spanning tree protocol, IEEE 802.1p Class of service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control

Planet GSD-802PS Overview

High Gigabit Performance / Wire-Speed Switching With 16Gbps non-blocking switch fabric, 8K MAC Address table and IEEE 802.3x Full-Duplex flow control, the GSD-802PS offers wire-speed packet transfer performance without risking of packet loss. The two Gigabit SFP (Small Factor Pluggable) slots can be installed with 1000Base-SX / LX mini-GBIC modules which offer incredible extensibility, flexibility and connectivity to the Core switch or servers.

Friendly / Simple Web Management Interface For efficient management, with its built-in Web-based management, the GSD-802PS offers an easy-to-use and configuration facility. The smart functions make it easy to survey and control the PoE power provision Via the web interface, the GSD-802PS can be programmed for basic Switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, 802.1X network security authentication and Misc Configuration. Additionally, the firmware includes advanced features, such as PoE control, IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization.
