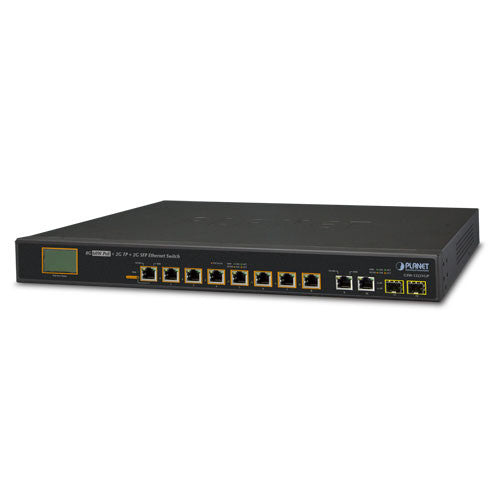

Planet GSW-1222VUP 8-Port Gigabit Ultra PoE+ Switch with LCD Monitor
Usually Ships in 10 - 12 days
Planet GSW-1222VUP Features
| Hardware Specifications | |
| PoE Copper Ports | 10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 2 x 1000BASE-X SFP interface |
| PoE Injector Ports | 8 ports with Ultra PoE/802.3at/af PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 24Gbps/non-blocking |
| Switch Throughput@64 bytes | 17.8 mpps@64 bytes |
| MAC Address Table | 8K entries |
| Jumbo Packet Size | 10K bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED |
System: Power (Green) Ultra PoE 10/100/1000BASE-T RJ45 Interfaces (port 1 to port 8): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Orange) PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 Interfaces (port 9 to port 10): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Orange) 1000BASE-X SFP Interfaces (port 11 to port 12): 1000Mbps LNK/ACT (Green) |
| LCD Monitor (W x D) | 39.5mm x 24.8mm System status and PoE usage port status |
| Dimensions (W x D x H) | 440 x 233 x 44 mm, 1U height |
| Enclosure | metal |
| Weight | 3.3kg |
| Power Requirements | 100~240V AC, 50/60Hz, 6A max. |
| Power Consumption/Dissipation | Max. 420 watts/1433 BTU |
| Ventilation | Smart fan x 3 (Fans will activate once the PoE budget reaches 126 watts) |
| ESD Protection | Contact discharge of ±4KV DC Air discharge of ±6KV DC |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at/Ultra PoE PSE |
| PoE Power Supply Type | End-span + Mid-span |
| PoE Power Output | Per port 54VDC, 600mA. max. 60 watts (Ultra PoE) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Power Pin Assignment | Ultra PoE: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) End-span: 1/2 (+), 3/6 (-) Mid-span: 4/5 (+), 7/8 (-) |
| PoE Power Budget | 380 watts (max.) |
| PoE Ability PD @ 15 watts | 8 units |
| PoE Ability PD @ 30 watts | 8 units |
| PoE Ability PD @ 60 watts | 6 units |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Ready to Deploy Next Generation Power over Ethernet
PLANET has recently announced a complete 60W Ultra PoE Solution, such as 60W Ultra PoE Injector/Splitter, 60W Ultra PoE Extender and 60W Ultra PoE Injector Hub. One of them in the PLANET ultra PoE product series family is the GSW-1222VUP.
A new family member of PLANET 60W Ultra PoE Solution, the GSW-1222VUP is an 8-port 10/100/1000T Ultra PoE + 2-port 10/100/1000T + 2-port 1000X SFP Gigabit Ethernet Switch with a total of 380 watts of PoE budget. One special feature that this unit has is the LCD display for PoE work status monitoring. Each PoE port can deliver up to 60-watt power over Cat.5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W or standard 802.3at compatible powered device (PD) for different kinds of PoE applications, respectively.
The GSW-1222VUP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.
60 Watts of Power over 4-pair UTP System
The GSW-1222VUP Ultra PoE solution adopts the IEEE 802.3at PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the GSW-1222VUP is able to deliver per port 60watts of power to each remote PoE compliant powered device.
The amount of power capability that the GSW-1222VUP possesses doubles that of the conventional 802.3at PoE, thus making an ideal solution to meeting the growing demand for higher power consuming network PDs, such as:
■ PoE PTZ speed dome
■ Any network device that needs higher PoE power to work normally
■ Thin-client
■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
■ Remote digital signage display
LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the GSW-1222VUP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the GSW-1222VUP directly. Also the Power Budget Control function helps to prevent power budget overloading.
Flexible and Extendable Two Gigabit Uplink Solution
The GSW-1222VUP provides two extra Gigabit TP ports and two extra Gigabit SFP interfaces. The two Gigabit TP ports support 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server and NAS to facilitate surveillance management. Or through two Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), or even going up to 10/20/30/40/50/60/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Smart Fan Design for Silent Operation
The GSW-1222VUP features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically activates 3 fans once the PoE budget reaches 126 watts and maintains the temperature of the GSW-1222VUP for optimal power output capability. The GSW-1222VUP is able to operate reliably, stably and quietly in any environment without affecting its performance.
Robust Protection
The GSW-1222VUP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Quick and Easy PoE Network Deployment
As data transfer and high power PoE are transmitted over a cable, the GSW-1222VUP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSW-1222VUP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
