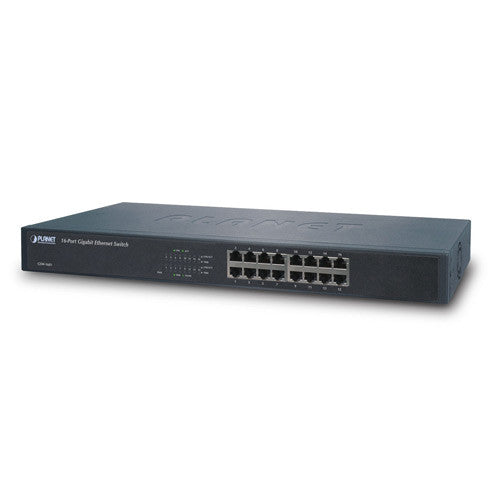

Planet GSW-1601 16 Port Rack Mount Gigabit Ethernet Switch
Usually Ships in 10 - 12 days
Choose options
Usually Ships in 10 - 12 days
Usually Ships in 10 - 12 days
Planet GSW-1601 Features
| Hardware Specifications | |||||
| Hardware Version | Version 5 | ||||
| 10/100/1000Base-T MDI/MDIX Ports | 16 | ||||
| Throughput (packet per second) | 23.8Mpps | ||||
| Switch Fabric | 32Gbps / non-blocking | ||||
| Weight | 1.9kg | ||||
| Power Consumption / Dissipation | 13 watts / 44 BTU | ||||
| Power Requirements | 100-240V AC, 0.6A, 50/60Hz | ||||
| Dimensions (W x D x H) | 440 x 180 x 45 mm, 1U height | ||||
| Switch Processing Scheme | Store-and-Forward | ||||
| Address Table | 8K entries | ||||
| Jumbo Packet Size | 9K | ||||
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex | ||||
| Standards Conformance | |||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||
| Standards Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab(Gigabit Ethernet) IEEE 802.3x (Full-duplex flow control) | ||||
| Environmental Specifications | |||||
| Temperature |
| ||||
| Humidity |
| ||||
Planet GSW-1601 Overview
Cost-Effective Gigabit Solution for Enterprise Backbone and Data Center Networking
PLANET GSW-1601 provides 16 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
High Performance
The GSW-1601 provides high performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-1601 enables routers and servers directly connect to the Switch for fast and reliable data transfer.
All RJ-45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 could recognize up to 8K different MAC address. The high data throughput and 32Gbps internal switching fabric makes it ideal for most Gigabit environments, especially when network upgrades to a Gigabit environment.
