Planet GSW-2400HPS 24-Port PoE+ Web Smart Ethernet Switch

Discontinued

Planet GSW-2400HPS Features

Hardware Specifications

• Copper Ports: 24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X Ports
• PoE Injector Ports: 24 802.3af / 802.3at PoE Injector Ports
• Switch Throughput: 35.7Mpps@64Bytes
• Switch Architecture: Store and Forward
• Power Requirement: AC 100~240V, 50/60Hz, 4A max.
• Power Consumption: Max. 330 watts / 1122 BTU

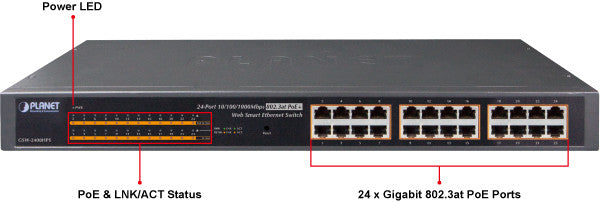

• LED Display: System: Power (Green), PoE Ethernet Interfaces: PoE In-Use (Orange), 1000 LNK / ACT (Green), 10/100 LNK / ACT (Orange)
• Dimension (W x D x H): 445 x 207 x 45 mm (1U height)
• Weight: 2.76kg
• Operating Temperature: 0 ~ 50 Degree C with 5% ~ 95%, relative humidity, non-condensing
• Warranty: 3 Year Warranty

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / PSE, IEEE 802.3at Power over Ethernet Plus / PSE
• PoE Power Supply Type: NA
• PoE Power Output: Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af), Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
• Power Pin Assignments: NA
• PoE Power Budget: 300 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.1Q VLAN Tagging, IEEE 802.3af Power over Ethernet, IEEE 802.3at High Power over Ethernet

Layer 2 Function: Please see datasheet

Planet GSW-2400HPS Overview

Cost-Optimized Web Smart PoE+ Switch for Small and Medium Businesses
The PLANET GSW-2400HPS is an ideal PoE Switch which provides cost-effectiveness advantage to local area network and is widely accepted in SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus(PoE+) at an affordable price. The GSW-2400HPS is equipped with 24 10/100/1000Base-T gigabit Ethernet ports integrating with 802.3at PoE+ injector function on all ports. It offers a rack-mountable, affordable, safe and reliable power solution for SMB deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

IEEE 802.3at/af Compliant Power Source Switch
The PoE in-line power following the IEEE 802.3at/af standard makes the GSW-2400HPS able to deliver gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 300 watts. The GSW-2400HPS provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.

Friendly Web-Based Management
For efficient management, the GSW-2400HPS is equipped with friendly Web interface for remote monitoring. It can be programmed for advanced switch management functions such as port configuration, 802.1Q VLAN, port trunk, QoS, bandwidth control, storm control and loop protection. These features provide a cost-effective way to manage the network devices through the Internet whenever you are at work or at home.

Quick and Easy PoE Network Deployment
The PoE capabilities provided also helps to reduce deployment costs for network devices as a result of freeing from restrictions of power outlets on the wall, ceiling or any unreachable place. Power and data switching are integrated into one unit, delivered over a single Ethernet cable at the distance up to 100 meters. It thus eliminates cost for additional AC wiring and reduces installation time.

Energy-Saving Design
The GSW-2400HPS uses new engine that incorporates two advanced Green Networking technologies: 　　
■ Idle Mode Link Down power saving
■ Intelligent Scales Power based on cable length
The Idle mode Link Down power saving of the GSW-2400HPS complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. The Intelligent Scales Power technology actively determines the appropriate power level based on the cable length. When connecting to the GSW-2400HPS with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSW-2400HPS would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.
