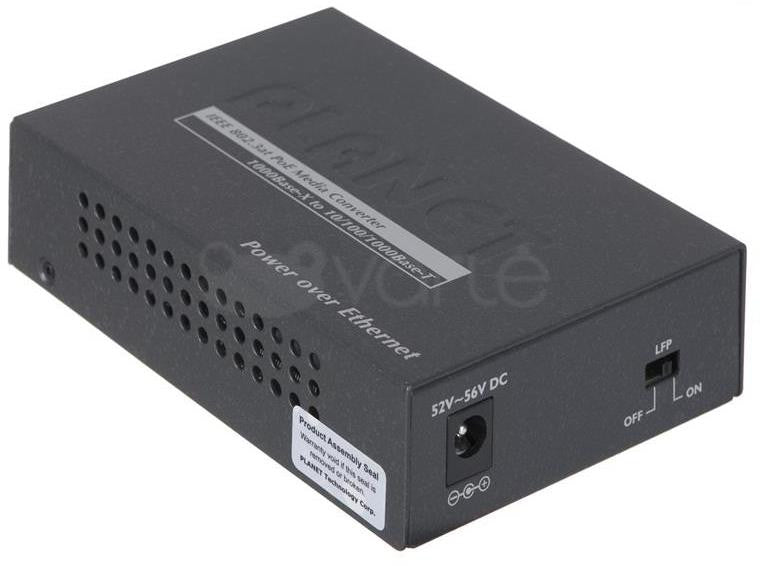

Planet GTP-805A 1-Port IEEE802.3af/at PoE 10/100/1000Base-T to 100/1000X SFP Media Converter

Planet GTP-805A Features

Interface

• 1-Port RJ45 interface
• 　- 1-Port Data + Power output
• 1-Port Fiber Optic
• 　- GTP-805A: LC Fiber Interface
• DC 52V power input socket

PoE

• Complies with IEEE 802.3af standard and IEEE 802.3at standard, Mid-Span PSE
• Provides DC 52V power over RJ45 Ethernet cable to devices with Ethernet port
• Supports PoE Power up to 30 watts for PoE port
• Auto detects of IEEE 802.3at / IEEE 802.3af PoE equipment protecting the devices from being damaged by incorrect installation
• Remote power feeding up to 100m
• IEEE 802.3at / IEEE 802.3af splitter devices compatiblility

Hardware

• Metal Case
• LED indicators
• 　- Power LED
• 　- PoE In-use
• 　- Fiber LNK / ACT
• 　- TP LNK / ACT
• DIP-switch: LFP (Link Fault Pass-through) Mode selection
• 9K Maximum Frame Size Supported

Standard Compliance

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• IEEE 802.3af Power over Ethernet Standard
• IEEE 802.3at Power over Ethernet enhancements Standard
• FCC Part 15 Class A, CE
