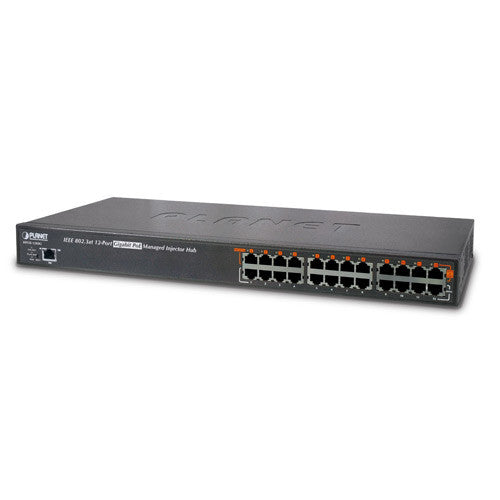

Planet HPoE-1200G 12-Port HPoE Gigabit Injector Hub

Planet HPoE-1200G Features

Hardware Specifications

• Ethernet Ports: “Data” Input Ports: 12 x RJ-45; “Data+Power” Output Ports: 12 x RJ-45; Management Port: 1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX
• PoE Ports: 12
• Power Requirement: 100-240V AC, 50/60 Hz
• Power Consumption: 370 Watts max.
• LED Display: System: SYS Power x 1 (Green); Management Port x2: 10/100 (Green / Orange); Per PoE Port: PoE in use x 1 (Green); PoE Fail x 1; FAN Fail x 1
• Dimension (W x D x H): 440 x 300 x 44 mm
• Weight: 4.27kg
• Operating Temperature: 0 ~ 50 Degree C, 5 ~ 95% (Non-condensing)
• Cooling: Fan x 2

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / Mid-Span PSE
• PoE Power Supply Type: Mid-Span
• PoE Power Output: Per Port DC 52V 30.8 / 15.4 Watts
• Power Pin Assignments: 4/5(+), 7/8(-)
• PoE Power Budget: 340 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet; IEEE 802.3ab 1000Base-T Gigabit Ethernet; IEEE 802.3at Power over Ethernet; IEEE 802.3af Power over Ethernet; RFC 768: UDP; RFC 791: IP; RFC 2068 HTTP; RFC 1157: SNMPv1; RFC 1902: SNMPv2c; RFC 5424: Syslog

Planet HPoE-1200G Overview

High Power PoE for Public Service PoE Applications
The PLANET HPOE-1200G, the next generation 12-Port Gigabit IEEE 802.3at High Power PoE Web Management Injector Hub, features both IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 Watts power output and data per port over one CAT 5e/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ(Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double amount of PoE power than conventional 802.3af PoE PSE.

IEEE 802.3at PoE Standard Compliant
Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications increases, the demand of higher power appears. Hence, the IEEE 802.3at Power over Ethernet standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at PoE standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the HPOE-1200G possesses stronger power capability than the existing 802.3af PoE PSE.

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contribute to environment protection on the earth, the HPOE-1200G can effectively control the power supply besides its capability of giving high watts power. The “PoE Schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money.

Advanced Power Management
To facilitate power management, the HPOE-1200G is implemented powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocate to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold. The HPOE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time.

Quick and Easy PoE Network Deployment
The HPOE-1200G complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af standards and IEEE 802.3at standard. With 12 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-1200G supports 52V DC power for any remote 802.3af / 802.3at powered device (PD). Supports PoE power budget of 340 Watts, the HPOE-1200G provides sufficient 15.4 Watts / 30.8 Watts PoE power up to 12 remote PD devices.

Easy Cabling Installation
The HPOE-1200G is installed between a regular Ethernet Switch and the powered devices; it injects power to the PDs without affecting data transmission performance. It offers a cost effective and quick solution to upgrade network system to IEEE 802.3af / IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet Switch. There are 24 RJ-45 STP ports on the front panel of the HPOE-1200G, of which the 12 ports on the lower stack function as "Data input" and the other 12 ports on the upper stack function as "PoE (Data and Power) output". The 12 "PoE output" ports are also the power injectors that transmit DC Voltage to the CAT 5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.

Friendly Web Management Interface
To efficiently manage the powered devices, the HPOE-1200G provides simple Web management interface in which administrators can control the functions including port Enable / Disable, port priority, system configuration, Username / Password changing and smart features for powered devices. The PoE injector Hub can automatically detect the power status of each port and show massages on its Web management interface. These features also provide users a cost-effective way to manage the device via Internet whenever they are at work or at home.
