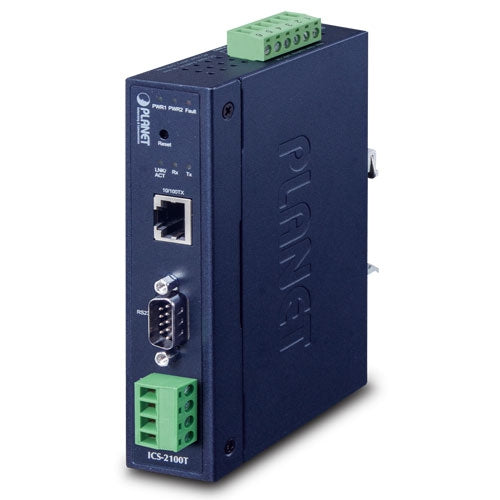

Planet ICS-2100T IP30 Industrial 1-Port RS232/RS422/RS485 Serial Device Server
Usually Ships in 10 - 12 days
IP30 Industrial 1-Port RS232/RS422/RS485 Serial Device Server (1 x 10/100BASE-TX, -40~75 degrees C, dual 9~48V DC, Web, Telnet and SNMP management )
Overview
Cost-effective Solution for RS232/422/485 Serial-to-Industrial Ethernet Application

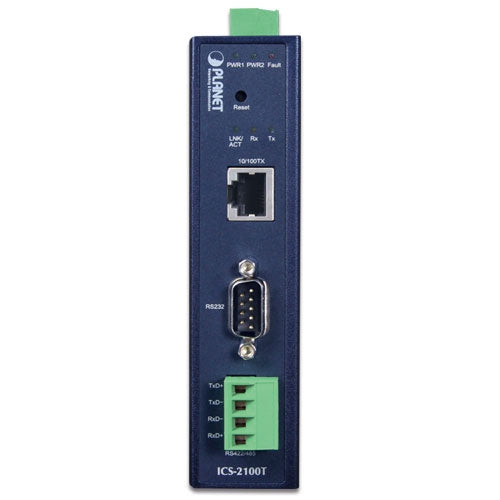

PLANET ICS-2100T Serial Device Server is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking so as to extend the network distance efficiently and inexpensively. There is one 10/100BASE-TX RJ45 port in the ICS-2100T and its operating temperature ranges from -40 to 75 degrees C for your network needs. The ICS-2100T is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.
Remote Management
As the ICS-2100T provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the network administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well.
Stable Performance under Difficult Environments
The ICS-2100T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the ICS-2100T to be placed in almost any difficult environment.
The ICS-2100T, equipped with compact IP30 standard metal case, allows either DIN-rail or wall mounting for efficient use of cabinet space. The ICS-2100T also provides an integrated power supply source with a wide range of voltages (9 to 48V DC / 24V AC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.
Dual Power Input for High Availability Network System

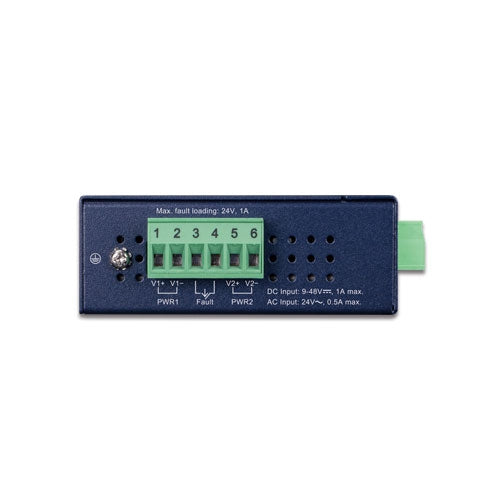

The ICS-2100T features a strong dual power input system with wide-ranging voltages (9V~48V DC / 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ICS-2100T via Power Supply 2 without any break of operation.
Effective Alarm Alert for Better Protection
The ICS-2100T comes with a Fault Alarm feature which can alert the users when there is something wrong with the Serial Device Server. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. The ICS-2100T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.
