Planet IFGS-1022HPT Industrial 8-Port PoE + 2-Port Gigabit TP/SFP Combo Ethernet Switch

Planet IFGS-1022HPT Features

Physical Port

• Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
• Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
• Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9 and Port-10)

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• 240-watt PoE budget
• Supports PoE power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters

Industrial Case and Installation

• IP30 metal case
• DIN rail and wall-mount design

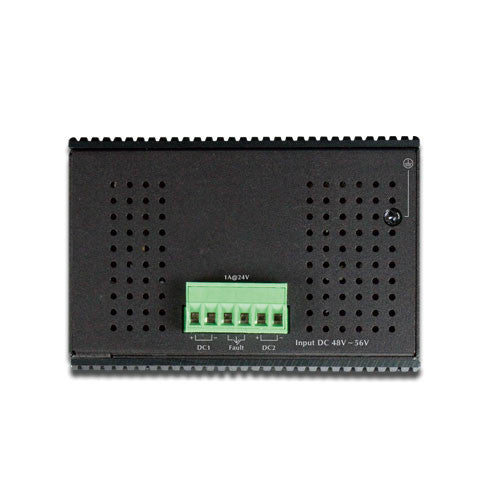

• 48~56V DC, redundant power with polarity reverse protect function
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Switching

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16K MAC address table size
• 10K jumbo frame
• IEEE 802.1Q VLAN transparency
• Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps
• Automatic address learning and address aging
• Supports CSMA/CD protocol
