Planet IGS-10080MFT Industrial 8 Port 100/1000X SFP + 2-Port Gigabit Managed Switch

Planet IGS-10080MFT Features

Physical Port

• 8 100/1000Base-SX/LX mini-GBIC SFP slots
• 2 10/100/1000Base-T Ethernet interface

Industrial Case / Installation

• IP30 Aluminum case protection
• DIN-Rail and Wall Mount Design
• Redundant Power Design
  - 12 to 48V DC, redundant power with polarity reverse protect function
  - AC 24V power adapter acceptable
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operation temperature

Layer 2 Features

• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
• Storm Control support
  - Multicast / Unknown-Unicast
• Supports VLAN
  - IEEE 802.1Q Tagged VLAN
  - Up to 255 VLANs groups, out of 4095 VLAN IDs
  - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  - Private VLAN
  - Protocol-Based VLAN
  - MAC-Based VLAN
  - Voice VLAN
• Supports Spanning Tree Protocol
  - STP, IEEE 802.1D Spanning Tree Protocol
  - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  - BPDU Guard
• Supports Link Aggregation
  - 802.3ad Link Aggregation Control Protocol (LACP)
  - Cisco ether-channel (Static Trunk)
  - Maximum 5 trunk groups, up to 10 ports per trunk group
  - Up to 20Gbps bandwidth(Duplex Mode)
• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
• Supports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
  - IEEE 802.1p CoS
  - IP TOS / DSCP / IP Precedence
  - IP TCP/UDP port number
  - Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IGMP Snooping v1, v2 and v3
• Supports MLD Snooping v1 and v2
• Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering
• MVR (Multicast VLAN Registration)

Security

• IEEE 802.1x Port-Based / MAC-Based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• IP-Based Access Control List (ACL)
• MAC-Based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Loop Protection
• IP address access management to prevent unauthorized intruder

Management

• Switch /Management Interfaces
  - Web switch management
  - Remote Telnet management
  - SNMP v1, v2c, and v3 switch management
  - SSH / SSL secure access
• Four RMON groups (history, statistics, alarms, and events)
• IPv6 IP Address / NTP / DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via HTTP / TFTP
• DHCP Relay
• DHCP Option82
• User Privilege levels control
• NTP (Network Time Protocol)
• PTP (Precision Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• Reset button for system reboot or reset to factory default
• PLANET Smart Discovery Utility for deploy management

Planet IGS-10080MFT Overview

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom

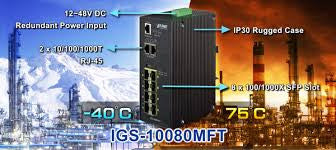

PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides 8-Port 100/1000Base-X SFP fiber optic interface and 2 extra 10/100/1000Base-T copper interfaces delivered in an IP30 rugged strong case with redundant power system, being able to operate under the temperature range from -40 to 75 Degree C, the IGS-10080MFT can be placed in almost any difficult environment.

IPv6 / IPv4 Full-Functioned Managed Switch for Building Automation Networking
The IGS-10080MFT is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. The IGS-10080MFT provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and automation network connectivity.

Fast Recovery to a Redundant Ethernet Network
The IGS-10080MFT features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (RSTP), Multiple Spanning Tree (MSTP) as well as the Loop protection function that will shutdown specific Ethernet interfaces when system detects a loop. The dynamic port Link Aggregation and Redundant Power System are provided into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It greatly protects customer’s industrial network with switching recovery capability that is used for implementing fault tolerant ring architectures.

Flexible and Extendable Solution
The 8 mini-GBIC slots built in the IGS-10080MFT support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.
