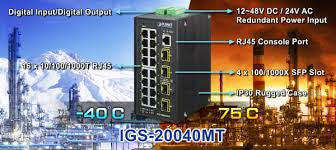

Planet IGS-20040MT L2+ Industrial 16-Port Gigabit + 4 100/1000X SFP Managed Switch

Planet IGS-20040MT Features

Physical Port

• 16-Port 10/100/1000BASE-T RJ45 copper
• 4 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
• One RJ45 console interface for basic management and setup

Industrial Case and Installation

• IP30 aluminum case
• DIN-rail and wall-mount design
• Redundant power design
- 9 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable
• Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Digital Input and Digital Output

• 2 digital input (DI)
• 2 digital output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap

Layer 2 Features

• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
- Broadcast/multicast/unknown unicast
• Supports VLAN
- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
• Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) by VLAN- BPDU Guard
• Supports Link Aggregation- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 10 trunk groups, with 8 ports per trunk group- Up to 16Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring of the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports E.R.P.S. (Ethernet Ring Protection Switching)
• IEEE 1588 and synchronous Ethernet network timing

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
- IEEE 802.1p CoS- IP ToS, DSCP, IP precedence- IP TCP/UDP port number- Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and in/out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• MVR (multicast VLAN registration)

Security

• Authentication
- IEEE 802.1x port-based and MAC-based network access authentication- Built-in RADIUS client to cooperate with the RADIUS servers- TACACS+ login users access authentication- RADIUS/TACACS+ users access authentication
• Access Control List
- IP-based Access Control List (ACL)- MAC-based Access Control List
• Source MAC/IP address binding
• DHCP snooping to filter untrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder

Layer 3 IP Routing Features

• Supports maximum 32 static routes and route summarization

Management

• IPv4 and IPv6 dual stack management
• Switch management interfaces
- Console/Telnet command line interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH/SSL secure access
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP/TFTP- Reset button for system reboot or reset to factory default- Dual images
• DHCP relay and DHCP option82
• User privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• SFP-DDM (digital diagnostic monitor)
• Network diagnostic
- ICMPv6/ICMPv4 remote ping- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
• SMTP/Syslog remote alarm
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interfacing Link Up and Link Down notification
• System log
• PLANET Smart Discovery Utility for deployment management

Planet IGS-20040MT Overview

PLANET IGS-20040MT is an Industrial 20-port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable and high-speed data in heavy industrial demanding environments and forward data to remote network through fiber optic cabling. It provides 16-port 10/100/1000BASE-T copper and 4 extra 100/1000BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 40Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-20040MT provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial businesses expanding or upgrading their network infrastructures.

Environmentally Hardened Design
With IP30 aluminum case, the IGS-20040MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-20040MT can be placed in almost any difficult environment.

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-20040MT supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.

Digital Input and Digital Output for External Alarm
The intuitive unit supports Digital Input and Digital Output on its upper panel. The external alarm enables users to use Digital Input to detect external device’s status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-20040MT port is link-down, link-up or power-dead.

Robust Layer2 Features
The IGS-20040MT can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 groups with 8 ports for trunking and supports connection fail-over as well.

IPv6/IPv4 Full-function Secure Switch for Building Automation Networking
The IGS-20040MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 protocols, advanced Layer 2 to Layer 4 data switching and redundancy, QoS traffic control, network access control and authentication, and secure management features to protect customer’s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
With IPv4/IPv6 VLAN routing, the IGS-20040MT allows traffic to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

User-friendly Management Interfaces
For efficient management, the IGS-20040MT is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the IGS-20040MT offers an easy-to-use, platform independent management and configuration facility. The IGS-20040MT supports SNMP which can be managed via any management software based on standard SNMP v1 or v2. For reducing product learning time, the IGS-20040MT offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the IGS-20040MT offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can encrypt the packet content at each session.

Flexible and Extendable Solution
The 4 mini-GBIC slots built in the IGS-20040MT support dual-speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Intelligent SFP Diagnosis Mechanism
The IGS-20040MT supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

1588 Precision Time Protocol for Industrial Computing Networks
The IGS-20040MT is intended for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for the IEEE 1588 Precision Time Protocol and synchronous Ethernet. The protocol can precisely synchronize multiple clocks on a network.
