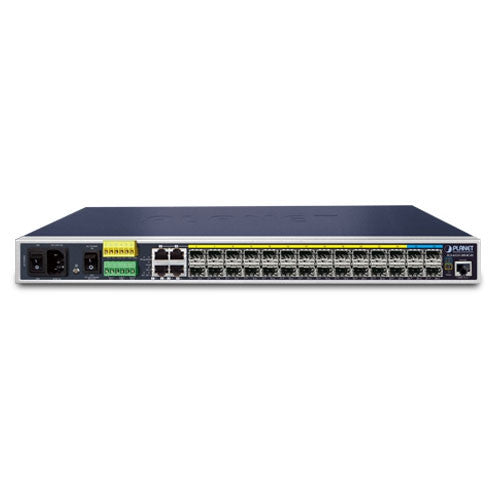

Planet IGS-6325-20S4C4X Industrial L3 20-Port 100/1000X SFP + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Ethernet Switch

Features

Physical Port

• 20 100/1000BASE-X mini-GBIC/SFP slots
• 4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
• 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• RJ45 to RS232 console interface for basic management and setup

Hardware Conformance

• One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with polarity reverse protect function
- Active-active redundant power failure protection

- Backup of catastrophic power failure on one supply

- Fault tolerance and resilience
• 19-inch rack-mountable design
• IP30 metal case
• Supports EFT 6000V DC protection and 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature for DC power input
• -10 to 60 degrees C operating temperature for AC power input

Digital Input & Digital Output

• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap

Layer 3 IP Routing Features

• Supports maximum 128 static routes and route summarization
• IP dynamic routing protocol supports OSPFv2
• Routing interface provides per VLAN routing mode

Layer 2 Features

• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm control support
- Broadcast/Multicast/Unknown unicast
• Supports VLAN
- IEEE 802.1Q tagged VLAN

- Up to 256 VLANs groups, out of 4096 VLAN IDs

- Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- IP subnet-based VLAN

- GVRP

• Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)

- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN

- BPDU Guard

• Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 14 trunk groups, with 16 ports for each trunk

- Up to 32Gbps bandwidth (full duplex mode)

• Provides port mirror (many-to-1)
• Port mirroring monitors the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• IEEE 1588 and Synchronous Ethernet network timing

Quality of Service

• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
- IEEE 802.1p CoS

- ToS/DSCP/IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic policing on the switch port
• DSCP remarking
• Voice VLAN

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• MVR (Multicast VLAN Registration)

Security

• Authentication
- IEEE 802.1x port-based/MAC-based network access authentication

- IEEE 802.1x authentication with guest VLAN

- Built-in RADIUS client to cooperate with the RADIUS servers

- RADIUS/TACACS+ users access authentication

• Access Control List
- IP-based Access Control List (ACL)

- MAC-based Access Control List (ACL)

• Source MAC/IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
- Console/Telnet command line interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH/SSL secure access

• IPv6 address/NTP management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP/TFTP

- Reset button for system reboot or reset to factory default

- Dual images

• DHCP relay and option 82
• DHCP Server
• User privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network diagnostic
- SFP-DDM (Digital Diagnostic Monitor)

- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues

- ICMPv6/ICMPv4 remote ping

• SMTP/Syslog remote alarm
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface link up and link down notification
• System Log
• PLANET Smart Discovery Utility for deployment management

Overview

PLANET IGS-6325-20S4C4X Industrial Layer 3 Managed Switch features 20 100/1000Mbps SFP ports, 4 shared SFP ports, 4 10G SFP+ ports and Layer 3 IP routing in a 1U case. With 10Gbps uplink, the IGS-6325-20S4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-20S4C4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-6325-20S4C4X when placed in the cabinet.
