Planet IGS-6325-24P4S Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port Shared 100/1000X SFP Managed Ethernet Switch

Features

Physical Port

• 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
• 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
• RJ45 to RS232 DB9 console interface for basic management and setup

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
• Up to 24 IEEE 802.3af devices powered
• Supports PoE power up to 36 watts for each PoE port
• 440-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE management features
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE admin-mode control
• PoE port power feeding priority
• Per PoE port power limit
• PD classification detection
• Intelligent PoE features
• Temperature threshold control
• PoE usage threshold control
• PD alive check
• PoE schedule

Industrial Protocol

• Modbus TCP for real-time monitoring in the SCADA system
• IEEE 1588v2 PTP (Precision Time Protocol)

Industrial Case and Installation

• IP30 metal case protection
• 19-inch rack-mountable design
• Dual 48~56V DC, redundant power with polarity reverse protect function
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
• Supports EFT protection for 6KV DC power and 5KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Digital Input and Digital Output

• 2 digital input (DI)
• 2 digital output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via email and SNMP trap

Layer 2 Features

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
• Broadcast/Multicast/Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Up to 256 VLANs groups, out of 4096 VLAN IDs
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Protocol-based VLAN
• MAC-based VLAN
• Voice VLAN
• GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Guard
• Supports Link Aggregation
• 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 14 trunk groups with 16 ports per trunk group
• Up to 32Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP)

Layer 3 IP Routing Features

• Supports maximum 128 static routes and route summarization
• IPv4 dynamic routing protocol supports OSPFv2
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP precedence
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic-policing on the switch port
• DSCP remarking

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)

Security

• Authentication
• IEEE 802.1x port-based / MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Console/Telnet Command Line Interface
• Web switch management
• SNMP v1 and v2c switch management
• SSH, TLS, SSL and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Reset button for system reboot or reset to factory default
• Dual Images
• DHCP Relay and DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• SFP-DDM (Digital Diagnostic Monitor)
• Network Diagnositc
• ICMPv6/ICMPv4 Remote Ping
• Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
• PLANET Smart Discovery Utility for deployment management
• SMTP/Syslog remote alarm
• System Log

Overview

Advanced Layer 3 Manageable PoE Solution for Hardened Environment

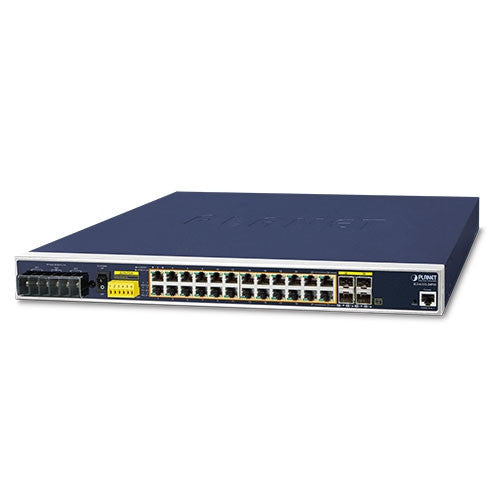

PLANET IGS-6325-24P4S L3 Industrial Managed PoE+ Switch, featuring 24 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, and 4 shared SFP ports in a 1U case. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

Layer 3 Routing Support

The IGS-6325-24P4S enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Cybersecurity Network Solution to Minimize Security Risks

The IGS-6325 Series supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

High Power PoE for Security and Public Service Applications

As the whole system comes with a total 440-watt PoE budget, the IGS-6325-24P4S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325-24P4S GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series, making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.

Intelligent Alive Check for Powered Device

The IGS-6325-24P4S PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6325-24P4S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-6325-24P4S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Scheduled Power Recycling

The IGS-6325-24P4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

The IGS-6325-24P4S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Effective Alarm Alert for Better Protection

The IGS-6325 Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

Digital Input and Digital Output for External Alarm

The IGS-6325 Series supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-6325 Series’ port shows link down, link up or power failure.

Robust Layer 2 Features

The IGS-6325 Series can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-6325 Series provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-6325 Series allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 6 trunk groups with 4 ports per trunk group, and supports fail-over as well.

Powerful Security

The IGS-6325 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6325 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

1588 Time Protocol for Industrial Computing Networks

The IGS-6325 Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Intelligent SFP Diagnosis Mechanism

The IGS-6325 Series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
