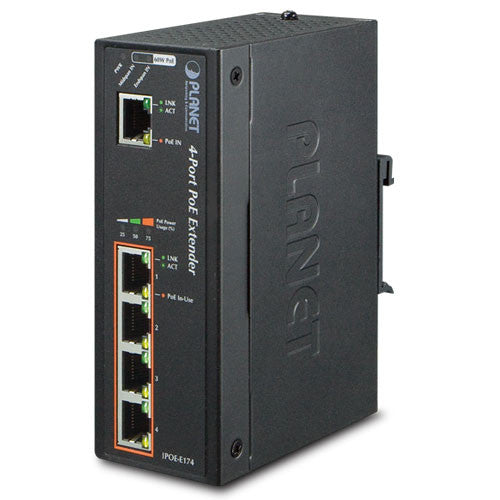

Planet IPoE-E174 Industrial 1-Port 60W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender

Planet IPoE-E174 Features

Physical Port

• Five 10/100/1000BASE-T Gigabit RJ45 interfaces
• - 1-port data + power input
• - 4-port data + power output

Power over Ethernet

• 1-port data + power input
• - Complies with ultra Power over Ethernet end-span and mid-span PD
• - Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
• - Supports PoE input power up to 75 watts
• 4-port data + power output
• - 60W total PoE power budget when connected to a 75W Ultra PoE injector
• - Complies with IEEE 802.3af/at PoE/end-span PSE
• - Up to 4 IEEE 802.3af/at devices powered
• - Supports PoE power up to 30 watts for each PoE port
• - Auto detects powered device (PD)
• Extends the range of PoE to an additional 100 meters (328ft.)
• Forwards both Ethernet data and PoE power to remote device

Layer 2 Features

• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Integrates address look-up engine, supporting 2K absolute MAC addresses
• 9K jumbo frame support in 1000Mbps duplex mode
• Automatic address learning and address aging

Industrial Case and Installation

• IP30 metal case
• DIN rail and wall-mount design
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• No external power cable required for installation
• Plug and Play installation

Planet IPOE-E174 Overview

PoE Solution for Long-reach Distance
PLANET IPOE-E174 is an industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E174 can obtain a maximum of 60-watt PoE power from ultra PoE input port and supplies a maximum of 50-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at / 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT. 5/5e/6 UTP cable to 200m up to 4 powered devices at the same time. The IPOE-E174 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Environmentally Hardened Design
With industrial-level IP30 metal case, the IPOE-E174 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-E174 can be placed in almost any difficult environment.

Intelligent LED Indicator for Real-time PoE Usage
The IPOE-E174 helps users to monitor the current status of PoE power usage easily by its advanced LED indication. Called “PoE Power Usage” shown in percentage, the front panel of the IPOE-E174 has three LEDs indicating 25, 50 and 75 percent of PoE power usage. With these LED indications, you can monitor the PoE power status of the IPOE-E174 efficiently.

Plug and Play, Easy Cabling Installation
The IPOE-E174 is quite easy to be installed by simple plug and play. It is used between a Power Source Equipment (PSE) and the Powered Device (PD). The IPOE-E174 injects power to the PD without affecting the data transmission performance. The IPOE-E174 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The IPOE-E174 is designed in a compact mini box containing 5 RJ45 ports, of which the 1 "PoE IN" port functions as PoE (Data and Power) input and the 4 "PoE OUT" ports on the other side functions as PoE (Data and Power) output. The "PoE OUT" port is also the power injector to transmit DC voltage over the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and PD.
