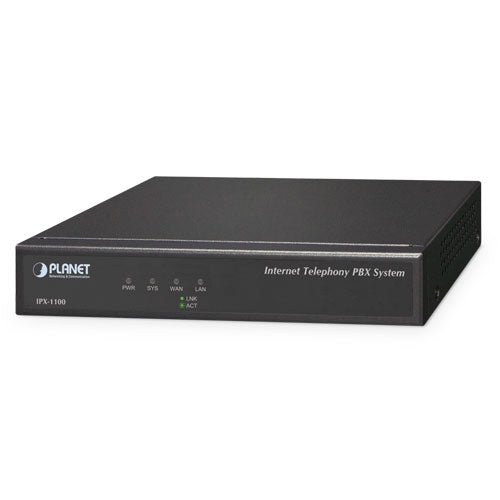

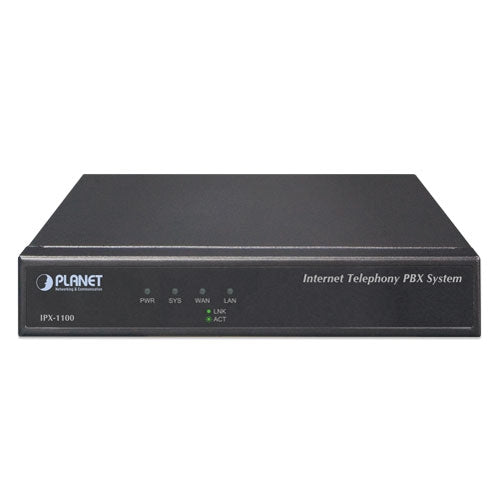

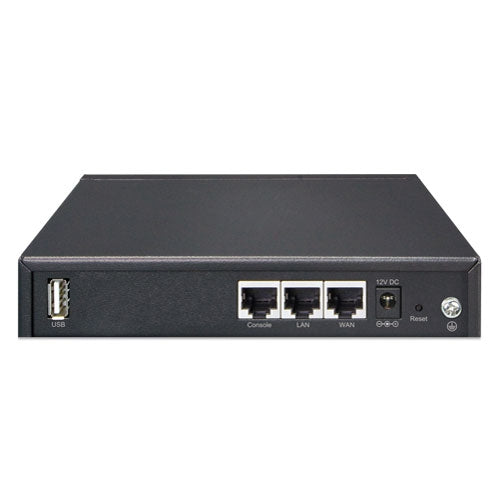

Planet IPX-1100 100 User Asterisk base Advance IP PBX, IETF SIP/IAX2, T.38 F

Intuitive, Ease-of-Use IP PBX Management

PLANET IPX-1100 advanced IP PBX telephony system is effortlessly set up and managed, thanks to its intuitive web-based user interface and quick setup wizard. As an Asterisk-based solution, it offers the complete benefits of pre-loaded SIP, akin to features found in other high-end enterprise-level appliances. With a capacity to accommodate 100 user registrations, the IPX-1100 simplifies the administration of a comprehensive voice-over-IP system, providing both convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.

Off-net Calling Capability, Call Restriction, Call Access Control

The IPX-1100 is instrumental in establishing a robust VoIP system for small- and medium-sized businesses (SMBs). When seamlessly integrated with PLANET VoIP gateways (VGW-series), the IPX-1100 extends support for analog connections. This integration guarantees seamless communication encompassing the existing PSTN calls, analog phones, IP phones, and SIP-based endpoints.

Distributed VoIP Network Infrastructure

In the new-generation communication age, the IPX-1100 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-1100 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-1100 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-1100 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

System Highlights

• 50 concurrent calls and up to 100 registers
• 30 conference attendees
• 400-hour recording (internal storage)
• Unlimited SIP/IMS trunks
• HD voice codec G.722 for perfect voice quality
• Voicemail to Email for not missing any important message
• Paging and intercom function strengthens the work efficiency
• Built-in SIP proxy server following RFC 3261
• Multiple language of GUI for international business
• Web-based control panel for easy configuration and management of the system
• Hardware echo cancellation module for great and smooth communication
• Strong security features protect your system from hacking
• Records voice and voicemail to external USB disk
• Quick setup wizard

Codec and Protocol

• SIP 2.0 (RFC3261), IAX2 and Lync server compliant
• Audio Codec: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR, AMR-WB
• Video Codec: H.261, H.263, H.263+, H.264 and VP8
• DTMF: RFC 4733, SIP info, in-band and auto

Network and Security Features

• DHCP server, DDNS client (PLANET DDNS & Easy DDNS)
• SNMP v1/v2, IEEE802.1Q VLAN
• IPv4/IPv6, TR069
• Manual configuration of static route table
• Troubleshooting (Ping and Traceroute)
• VPN server and VPN client
• Mitigates SIP Register DoS attacks
• Prevents Abort Invite DoS attacks
• Prevents SSH Login DoS attacks
• Firewall and enhances HTTPS connection
• Geo-IP (Security policy based on IP address geographical locations)
• Data backup and recovery

PBX Features

• SIP Register with UDP/TCP/TLS/SRTP
• One Touch Recording
• Mobility Extension
• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room
• DID (Direct Inward Dialing Number)
• SRTP (Secure Realtime Transport Protocol)
• DND (Do Not Disturb)
• IVR (Interactive Voice Responses)
• Follow Me, Call Spy and PIN Set
• Distinctive Ringtone
• Multi-language System Prompt
• Phone Book, Speed Dial
• Ring Group, SIP Trunk
• Skype for SIP, Smart DID, System Log
• T.38 fax (pass-through), voicemail and voicemail to e-mail

Call Features

• Call Back, Call Forward, Call Group
• Call Hold, Call Paging and Intercom
• Call Park, Call Pickup, Call Queue
• Call Record, Call Route, Blind Transfer
• Attend Transfer, Call Waiting
• Caller ID, Dial by Name
• Customized IVR, On-hold Music, Transfer
• 30 Conference attendees
• One-to-One Video Call
