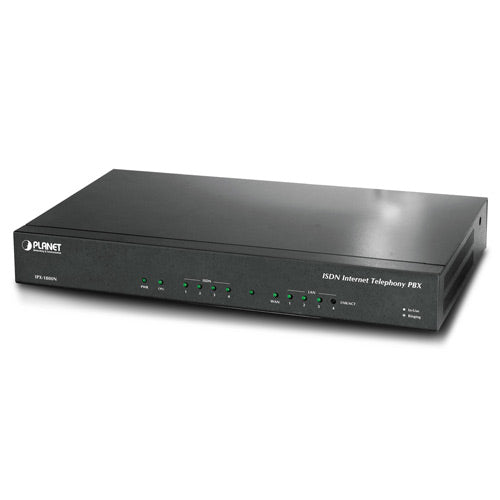

Planet IPX-1800N 30 User SIP base Advance IP PBX with 4-Port ISDN built-in, P

PLANET IPX-1800N ISDN IP PBX system is designed and optimized for the SMB and SOHO daily communications. The IPX-1800N is the next generation voice communication platform for small to medium enterprises. Designed as an open, scalable, and highly reliable telephony solution, the IPX-1800N is able to accept 30 extension registrations, and effectively scales from under 30 users to as many as 50-user enterprises. Designed to run on a variety of VoIP applications, the IPX-1800N provides centralized call control, auto-attendant, voice conferencing, ISDN access, digital and IP-based communications. The IPX-1800N integrates 4 ISDN telephony interfaces to become a feature-rich PBX system that supports seamless communications between existing local calls, IP phones and SIP-based endpoints.

The IPX-1800N integrates telephony call processing, call control, voice mail, and a widely PBX application programming interface into a highly scalable architecture designed to support both the traditional circuit-based and the Internet telephony service within a distributed enterprise communications network. With the IPX-1800N, standard SIP phones can be easily integrated in your office, plus the auto-config feature, which may be integrated with PLANET’s IP Phone VIP-154T series, VIP-155PT, and the ATA (analog telephone adapter) series - VIP-156 / VIP-157 to build the VoIP network deployment in minutes.

The IPX-1800N in the daily business processes is allowed to distribute IP technology to meet traditional voice services with proactive management interface so that enterprises can make people more productive, make more intelligent tasks, and gain more customer satisfaction.

SIP features

• Static/Dynamic registration
• Call-based MD5 authentication
• NAT traversal for clients
• Outbound proxy with or without WAN
• Up to 5 SIP trunks for inter-PBX SIP trunking
• Inter-proxy call hand-off
• Auto-config for SIP IP Phones/ ATA
• 30 registration / 30 voicemail / 10 concurrent calls
• Auto NAT Discovery and Traversal
• Built-in STUN Client
• RTP Proxy
• RTP Port Range Designation

Relational Provision

• Logical Partition/Relation between Users and Trunks
• Logical Provision on Outgoing and Incoming Calling Search Scopes
• Rich Dial-Plan Expressiveness thru Route Patterns
• User Privilege Propagation Over Intra-Trunks
• Object-Oriented Provisioning Paradigm

PBX Features

• Support call hold, call waiting, 3-way call conference with feature phones
• Built-in in-line call transfer
• Unconditional, unavailable, busy call forward
• Per-calling-number forward and rejection
• Call Privilege Grouping
• Group-based call pick-up
• Call-parking
• Up to 8 parties multi-room meet-me conference
• FXO disconnection tone detection
• In-band/RFC2833/SIP-INFO DTMF Translation
• QoS support
• Lifeline / Emergency call support
• Music on hold
• Outbound 900/0204 900/0204 FREE blocking
• Blacklist of Number Patterns

Auto Attendant

• Configurable IVR prompts
• Key to reach operator
• Work time IVR
• 3-layer Auto Attendant
• Timeout interval and timeout action
• Music on ringing extensions
• Forward to voice mail on no-answer

Voice Mail

• User PIN
• 450 minutes recording time
• MWI notification
• E-mail notification
• Personal reception on unavailability and busy
• Voicemail forwarding
• Voicemail to email
