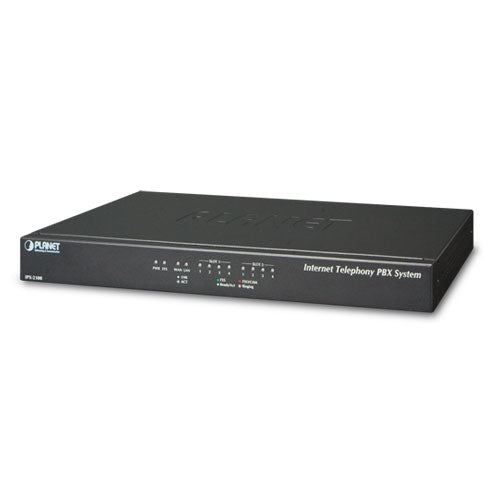

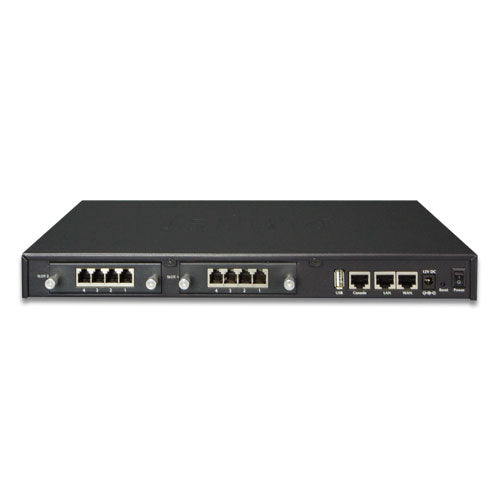

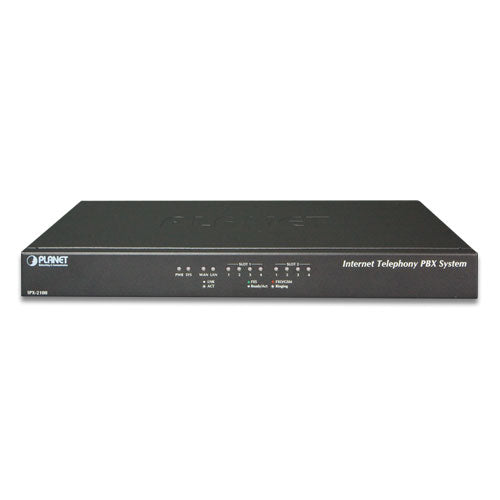

Planet IPX-2100 100 User Asterisk base Advance IP PBX with 2-expandable PCI

Intuitive, Ease-of-Use IP PBX Management
PLANET next-generation IPX-2100 IP PBX telephony system is easy to set up and manage thanks to a perceptive web-based user interface and quick setup wizard. Since it is an Asterisk-based equipment, the entire benefits of the pre-loaded SIP can be had as any other enterprise-level appliance would come equipped with the feature. The IPX-2100 is able to accept 100 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.

Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-2100 integrates up to 8 calls via the IPX-21FO (4 FXO), IPX-21SL (2 FXO + 2 FXS) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog phones, IP phones and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-2100 converts standard telephones into IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-2100, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2100 can be the bridge between the traditional analog system and IP network without having to invest heavily.

Distributed VoIP Network Infrastructure
In the new-generation communication age, the IPX-2100 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2100 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-2100 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

Standard Compliance
Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2100 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Green IP Office
The Fax to Email/Email to Fax service provided by the IPX-2100 allows users to transfer and receive faxes directly to or from your email inbox as file attachments. It is an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.

System Highlights

• 30 concurrent calls and up to 100 registers
• HD voice codec G.722 for perfect voice quality
• Fax to Email and Email to Fax for green office
• Voicemail to Email for not missing any important message
• Paging and intercom function strengthens the work efficiency
• Built-in SIP Proxy Server following RFC 3261
• Multiple Language of GUI for international business
• Web-based Control Panel for easy configuration and management of the system
• Hardware Echo Cancellation module for great and smooth communication
• Strong security features protect your system from hacking
• Maximum 8 ports FXO/FXS/GSM (on 2 slots)
• Records voice and voicemail to external USB disk
• Quick Setup Wizard

Codec and Protocol

• SIP 2.0 (RFC3261), IAX and Lync server compliant
• Audio Codec: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, Speex and Opus
• Video Codec: H.261, H.263, H.263+, H.264 and VP8
• DTMF: RFC 4733, SIP info, in-band and auto

Network and Security Features

• DHCP Server, DDNS Client (PLANET DDNS & Easy DDNS)
• SNMP v1/v2, IEEE 802.1Q of VLAN
• IPv4/IPv6, TR069
• Manual Configuration of Static Route Table
• Troubleshooting (Ping, Traceroute)
• VPN Server, VPN Client
• Refuse SIP Register DoS,
• Refuse Abort Invite Dos
• Refuse SSH Login DoS
• Firewall and enhances HTTPS connection

PBX Features

• SIP Register with UDP/TCP/TLS
• One Touch Recording
• Mobility Extension
• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room
• DID (Direct Inward Dialing Number)
• SRTP (Secure Realtime Transport Protocol)
• DND (Do Not Disturb)
• IVR (Interactive Voice Responses)
• Follow Me, Call Spy and PIN Set
• Distinctive Ringtone
• Multi-language System Prompt
• Phone Book, Speed Dial
• Ring Group, SIP Trunk
• Skype for SIP, Smart DID, System Log
• T.38 fax (pass-through), voicemail and voicemail to e-mail

Call Features

• Call Back, Call Forward, Call Group
• Call Hold, Call Paging and Intercom
• Call Park, Call Pickup, Call Queue
• Call Record, Call Route, Blind Transfer
• Attend Transfer, Call Waiting
• Caller ID, Dial by Name
• Customized IVR, On-hold Music, Transfer
• Three-way Conferencing, Video Call
