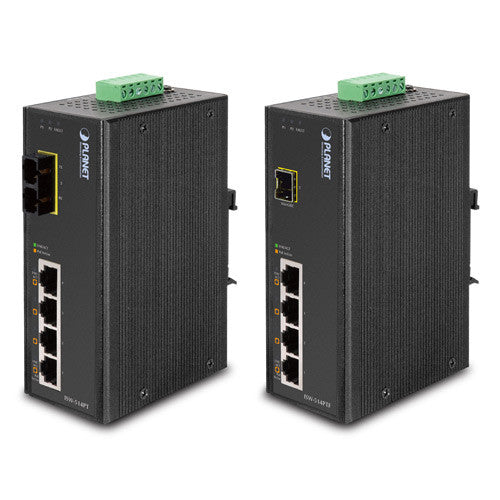

Planet ISW-514PSF Industrial 4-port PoE 1-port 100FX Web Smart Switch
Usually Ships in 10 - 12 days
Choose options
Usually Ships in 10 - 12 days
Usually Ships in 10 - 12 days
Planet ISW-514PSF Features
| Hardware Specifications | |
| 10/100Base-TX Ports | 4 |
| 100Base-FX Port | 1 |
| Fiber Port Type | ISW-514PSF：Vary on SFP |
| Connector Type | ISW-514PSF：SFP |
| Maximum Distance | ISW-514PSF：Vary on SFP |
| Optical Frequency | ISW-514PSF：Vary on SFP |
| Launch Power (dBm) | ISW-514PSF：Vary on SFP |
| Receive Sensitivity (dBm) | ISW-514PSF：Vary on SFP |
| IEEE 802.3af PoE Ports | 4 |
| Dimensions (D x W x H) | 135 x 87.8 x 56 mm |
| Weight | 871g |
| Power LED | Power1, Power2 and Fault Port 1~4: PoE in-use, LNK/ACT Port 5: LNK/ACT |
| Power Requirements | 24 or 48V DC, redundant power with polarity reverse protection function |
| Enclosure | IP-30 aluminum metal case |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Installation | DIN rail kit and wall mount ear |
| Alarm | One relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 48V DC, 350mA . max. 15.4 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 1Gbps |
| Throughput (packet per second) | 0.74Mpps@64bytes |
| Address Table | 1K entries |
| Maximum Frame Size | 1536 Bytes |
| Pack Buffer | 512k bits |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Network cables | • 10/100Base-TX: • 4-Pair UTP Cat. 3, 4, 5, 5e, 6 (100meters, max.) • EIA/TIA-568 100-ohm STP (100meters, max.) • 100Base-FX: • Multi-Mode optic fiber 62.5/125μm or 50/125μm • Single-Mode optic fiber 9/125μm |
| Layer 2 Function | |
| Management | Web management, SNMP Trap |
| VLAN | • Port-based VLAN • IEEE 802.1Q Tag-based VLAN, Up to 16 VLAN groups |
| QoS | 2 priority queues for three type of Class of Service • Port-based • IEEE 802.1p priority tag • TCP/IP header’s DSCP classifier Weighted Round Robin queue scheduling |
| Bandwidth Control | Inbound Rate Limit and Outbound Traffic shaping |
| Storm Control | Disable, 12.5%, 25%, 50%, 62.5% 4 levels |
| Security | Supports 5 IP addresses that have permission to access the Switch |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging |
| Environment | |
| Temperature | Operating: -10~60 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
Planet ISW-514PSF Overview
PLANET ISW-514PS series, a Web Management Industrial PoE Switch, is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and performs intelligent PoE control, power usage monitoring and smart Layer 2 switching management in industrial harsh environments. The ISW-514PS series provides four 10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernet injector and one 100Base-FX fiber optic interface delivered in an IP30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-514PS series is an ideal solution to deploying surveillance system and wireless service in climatically demanding wide temperature range (-10 to 60 degrees C) environments.
PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-514PS series in-line power follows standard IEEE 802.3af and able to give power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-514PS series can reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power lowers the installation costs, simplifies the installation effort and eliminates the need for electricians or extension cords. Furthermore, as there is only 24V DC input in some industrial environments, the ISW-514PS series supports 24V DC or 48V DC dual voltages input and is able to provide more wide-ranging industrial IEEE 802.3af PoE applications.
Fiber Optic Link Capability for Flexible Distance Extension
The ISW-514PS series is equipped with one 100Base-FX port that provides more flexibility for Transportation, Manufacturing, Security and Surveillance on distance extension without any limitation. The ISW-514PS series offers high performance switch architecture as shown below:
• ISW-514PS comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 2km)
• ISW-514PS15 comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 15km)
• ISW-514PSF comes with 4 10/100Mbps UTP ports and 1 100FX (LC interface within optional of Single / multi-mode SFP module)
Excellent Web Smart Features
For efficient management, the ISW-514PS series is built with Web-based management design to offer a user-friendly configuration interface. It makes the ISW-514PS series easy to survey and control the PoE power provision to the devices via the Web interface. The ISW-514PS series features Web Smart functions including 802.1Q VLAN, bandwidth control, QoS, PoE Configuration, Port Management, Alert Trap Configuration and more. These features provide a cost-effective way to manage the network devices through the Internet whenever you are at work or at home.
Environmentally Hardened Design
With IP30 industrial case protection, the ISW-514PS series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. The aluminum metal case helps cooling much faster and enables the Industrial PoE Switch to operate stably under the harsh temperature environment ranging from -10 to 60 degrees C. Therefore, the web management Industrial PoE Switch can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
