Planet ISW-621 IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port 10

New slim type with more practicability and convenience

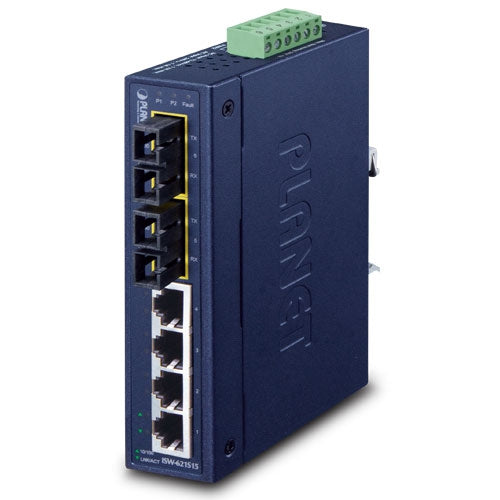

PLANET has released the ISW-621/ISW-621S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. Each of them is equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-621 has 2 100Base-FX multi-mode SC interfaces for transmission distance up to 2km, and the ISW-621S15 has 2 100Base-FX single-mode SC interfaces for transmission distance up to 15km, both of them operate reliably in Heavy Industrial demanding environments. Meanwhile, the compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.

Stable operating performance under difficult environments
The ISW-621 / ISW-621S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-621/ISW-621S15 can be placed in almost any difficult environment. The ISW-621/ISW-621S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch performance
The ISW-621/ISW-621S15 each provides 4 10/100Base-TX Ethernet ports and 2 100Base-FX optic-fiber SC interfaces, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The flow control function allows the ISW-621/ISW-621S15 to have fast and reliable data transfer.

All of the RJ-45 copper interfaces in the ISW-621/ISW-621S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

• Physical Port
　–4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
　–2-port 100Base-FX interfaces for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-621
　–2-port 100Base-FX interfaces for up to 15km (Single-mode fiber 9µm/125µm) on ISW-621S15

• Layer 2 Features
　–Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
　–Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
　–High performance Store and Forward architecture
　–Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
　–Backplane (Switching Fabric): 1.2Gbps
　–Integrated address look-up engine, support 2K absolute MAC addresses
　–1 Mbit on-chip frame buffer
　–Automatic address learning and address aging
　–CSMA/CD Protocol

• Industrial Case / Installation
　–IP-30 metal case / protection
　–DIN rail and wall mount design
　–12 to 48V DC, redundant power with polarity reverse protect function and
　　connective removable terminal block for master and slave power
　–Supports EFT protection 6000 VDC for power line
　–Supports 6000 VDC Ethernet ESD protection
　–-10 to 60 degrees C operating temperature
