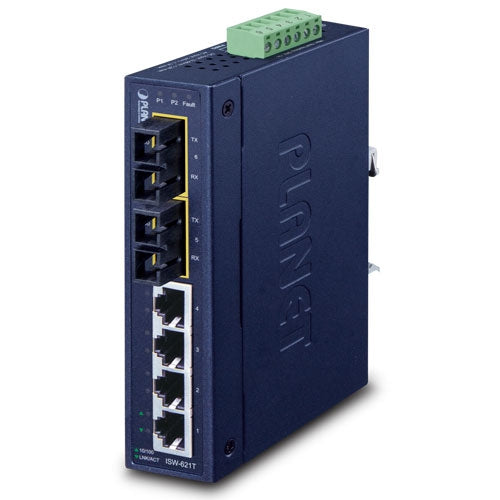

Planet ISW-621TS15 IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port 10

Highly Convenient and Feasible Industrial Robust Switch
PLANET has upgraded two models named ISW-621T and ISW-621TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW-621T and ISW-621TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-621T and ISW-621TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-621T / ISW-621TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Flexibly Extendable Distance
They(the ISW-621T and ISW-621TS15) each include four 10/100Base-TX auto-negotiation ports and two 100Base-FX ports. The ISW-621T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km while the ISW-621TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 20km. The two 100Base-FX ports provide more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation, making the ISW-621T / ISW-621TS15 suitable either for long distance (ISW-621TS15) or short distance (ISW-621T) network deployment.

Easy Installation and Wide Range of Power Usages
The ISW-621T and ISW-621TS15 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Physical Port

• 4-port 10/100BASE-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
• Two 100BASE-FX interfaces on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
• Two 100BASE-FX interfaces on ISW-621TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance

Layer 2 Features

• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX Ethernet standard
• Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
• High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering to eliminate erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (Switching Fabric): 1.2Gbps
• Integrated address look-up engine, supporting 2K absolute MAC addresses
• 1Mbit on-chip frame buffer
• Automatic address learning and address aging
• CSMA/CD Protocol

Industrial Case and Installation

• IP30 metal case protection
• DIN-rail and wall mount designs
• 12 to 48V DC, redundant power with reverse polarity protection
• Connective removable terminal block for master and slave power
• Supports EFT 6KV DC protection for power line
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C wide operating temperature
