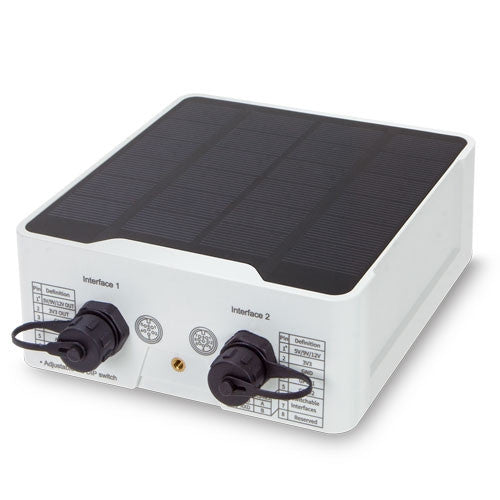

Planet LN501-868M Outdoor IP67 LoRa Node Controller - EU868 MHz.

• Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
• Long transmission distance up to 11km with line of sight
• Waterproof design including IP67 case and M12 connectors
• Solar powered and built-in battery (optional)
• Quick wireless configuration via NFC
• Compliant with standard LoRaWAN gateways and network servers

Feature-rich Sensor Hub for Connecting Sensors

PLANET LN501 is an outdoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on to simplify the deployment and replacement of LoRaWAN networks. The LN501can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar or built-in battery power supply and is equipped with IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.

LoRaWAN-based Controller with Rich Industrial Interfaces

The LN501 is LoRaWAN compatible and is with built-in multiple industrial interfaces to connect to all types of sensors, meters and other appliances. It also bridges Modbus data between serial and Ethernet network via LoRaWAN. The LN501 supports LoRaWAN class A and C protocol to be in full compatibility with standard LoRaWAN gateways including PLANET LCG-300 series.

• RS232
• RS485
• GPIO
• Analog Input

The LN501 is ideal for large-scale IoT application deployments, such as projects for building automation, smart metering, HVAC system, etc. With multiple interfaces, PLANET LN501 can perfectly help retrofit legacy assets into IoT enablement.

Outdoor IP67 LoRa Node Controller - EU868 MHz. (RS332, RS485, GPIO and Analog Input, Rechargeable, 2 × 2550 mAh battery with solar panel, external DC 5-24V input)
