Planet LRP-101CH Long Reach PoE Injector
Usually Ships in 10 - 12 days
Planet LRP-101CH Features
LRP-101CH
■ Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
■ PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100 meters
■ Maximum Frame Size: 1522 bytes
■ Connectivity: 1 x BNC female connector Long Reach PoE over coaxial PSE
(Power Source Equipment)
■ Power Output: 41~56V DC
■ Power Pin Assignment:
BNC center pole: DC+
BNC shield: DC-
■ Cabling:
Coaxial cable: 75 ohm
RG-6/U cable, less than 12Ω/1,000ft.
RG-59/U cable, less than 30Ω/1,000ft.
■ Maximum Distance:
Max. 200m with PoE+ output (656ft.)
Max. 600m with PoE output (1,968ft.)
Max. 1200m without PoE output (3,937ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit
■ LRP Compatibility: LRP-101CE, 1-Port LRP Extender
Planet LRP-101CH Overview
oaxial Injector Ideal for Harsh Environments
The LRP-101CH is a 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector featuring long range data and power transmission for distances of up to 1,000m (3,280ft.) over coaxial cables. The LRP-101CH operates in extreme temperature conditions between -20 to 70°C. The unit eliminates the need for additional power outlet sources, simplifying the deployment of PoE devices such as IP surveillance cameras and Wireless Access Points (WAPs). The LRP-101CH transmits data and power via a coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and a maximum of up to 25 watts of power to a PoE PD over an Ethernet cable. Both these units are housed in a compact, metal encasement that can be wall-mounted. The LRP-101CH can extend the reach of a network up to 1,000 meters (3,280ft) via a 75 ohm coaxial cable to deliver stable, high-quality video transmission.
Plug-n-play Installation

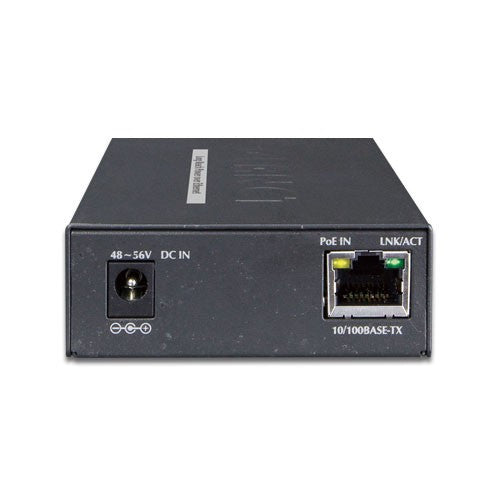

The LRP-101CH offers a plug-and-play installation and does not require additional configuration. Its diagnostic LEDs on the front panel show the operating status of the individual port and the connected systems.
