LRP-201ET
Planet LRP-201-KIT UPoE Over Coaxial/UTP Extender Kit (600m)

Planet

Planet LRP-201-KIT UPoE Over Coaxial/UTP Extender Kit (600m)

Sale price$547.40
Discontinued
SKU: LRP-201-KIT

Usually Ships in 10 - 12 days

Contact

Please view the Datasheet for technical information.

Interface

  • LRP-201HT:
    • 1-port BNC LRP output
    • 1-port RJ45 LRP output
    • 1-port Ethernet Data + Power input
    • 1 terminal block for master and slave power input. (Power Range: 48~54V DC redundant power)
    • 1 PAIR button
    • 1 Reset button

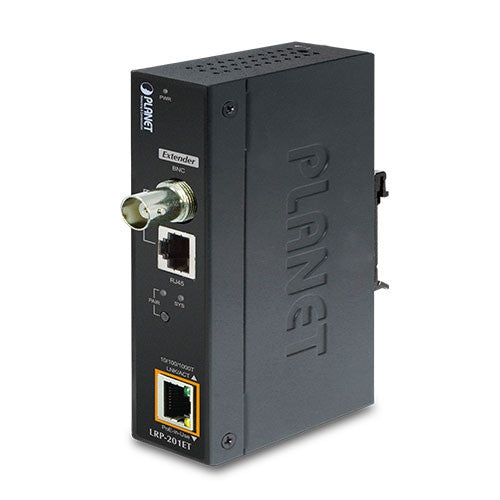

  • LRP-201ET:
    • 1-port BNC LRP input
    • 1-port RJ45 LRP input
    • 1-port Ethernet Data + Power output
    • 1 PAIR button
    • 1 Reset button

Power over Ethernet

  • Eliminates power cabling with PoE over coaxial/UTP/telephone wire
  • Supports Power over Ethernet PSE (PoE Injector)
  • Power and Ethernet data transmission over coaxial up to 600m
  • Power and Ethernet data transmission over UTP/telephone wire up to 400m
  • Complies with IEEE 802.3at/bt Power over Ethernet PD on RJ45 port
  • Supports Long Reach PoE power up to 75 watts (depending on power source and cable distance)
  • Supports PoE Power up to 60 watts (depending on power source and cable distance)
  • Auto detects remote PD
  • Plug and Play with no configuration required

Hardware

  • LED indicators for Power LED, SYS LED, PAIR LED, PoE-in-Use LED and PoE Input LED
  • IP30 slim type metal case

Industrial Case and Installation

  • Compact size; DIN-rail or wall-mount design
  • Supports 6KV DC Ethernet ESD protection
  • -20 to 70 degrees C operating temperature
