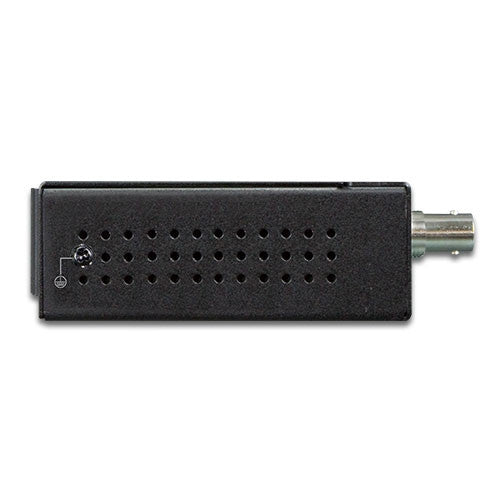

Planet LRP-201ET Industrial 1-Port 10/100/1000T Ultra PoE + 1-Port Coax/UTP Long Reach PoE Extender

Features

Interface

• 1-port BNC LRP input
• 1-port RJ45 LRP input
• 1-port Ethernet Data + Power output
• 1 PAIR button
• 1 Reset button

Power Over Ethernet

• Eliminates power cabling with PoE over coaxial/UTP/telephone wire
• Power and Ethernet data transmission over coaxial up to 600m
• Power and Ethernet data transmission over UTP wire up to 400m
• Power and Ethernet data transmission over telephone wire up to 300m
• Complies with IEEE 802.3at/bt Power over Ethernet PD on RJ45 port
• Supports PoE Power up to 60 watts (depending on power source and cable distance)
• Auto detects remote PD
• Plug and Play with no configuration required

Hardware

• LED indicators for Power LED, SYS LED, PAIR LED and PoE-in-Use LED
• IP30 slim type metal case

Industrial Case and Installation

• Compact size; DIN-rail or wall-mount design
• Supports 6KV DC Ethernet ESD protection
• -20 to 70 degrees C operating temperature

Overview

The LRP-201ET, a PLANET Long Reach PoE solution, is an Industrial Single-port 10/100/1000T Ultra PoE over Coaxial/UTP Extender featuring long range data and power transmission over any existing coaxial, UTP cable or telephone wire for distance up to 600 meters (1,968ft.) and converts power to IEEE 802.3at/bt PoE over another 100-meter Ethernet cable connected to the remote PoE PD. The LRP-201ET provides multi applications for easy Plug and Play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. It makes the installation of remote PoE PDs easier and more efficient.
