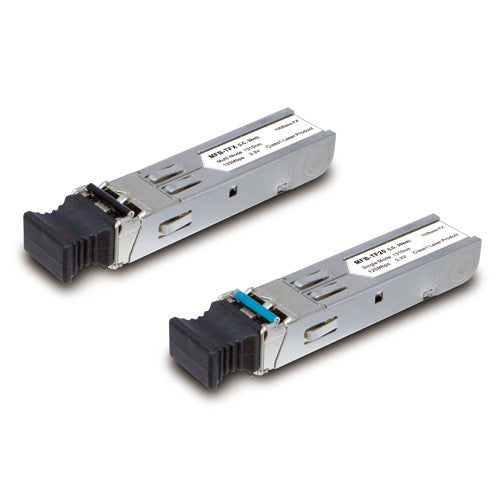

Planet MFB-FA20 WDM Tx-1310, 20KM, 100Mbps SFP fiber transceiver, DDM
Planet MFB-FA20 WDM Tx-1310, 20KM, 100Mbps SFP fiber transceiver, DDM

Planet

Planet MFB-FA20 WDM Tx-1310, 20KM, 100Mbps SFP fiber transceiver, DDM

$29.60
SKU: MFB-FA20

Usually Ships in 10 - 12 days

Quantity:
Link to Manufacturer's Page

Contact

  • SFP Multi-Source Agreement compliant
  • 125Mbps IEEE 802.3u 100Base-FX compliant
  • Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 )
  • 125Mbps FDDI ISO / IEC 9314-1 compliant
  • Serial ID functionality support
  • AC-coupled differential inputs and outputs
  • Class 1 laser safety standard IEC 825 compliant
  • 2km link on a multimode fiber and 20km to 60km on a single mode fiber
  • Low power dissipation
  • 0 to 60 degrees C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-FA20 / MFB-FB20
  • -40 to 75 degrees C operating temperature for MFB-TFX / MFB-TF20
Ordering Information

MFB-FX

 SFP-Port 100BASE-FX Transceiver (1310nm) -2km

MFB-F20

 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km

MFB-FA20

 SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm) -20km

MFB-FB20

 SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm) -20km

MFB-F40

 SFP-Port 100BASE-FX Transceiver (1310nm) - 40KM

MFB-F60

 SFP-Port 100BASE-FX Transceiver (1310nm) - 60KM

MFB-TFX

 SFP-Port 100BASE-FX Transceiver (1310nm) -2km (-40~75 degrees C)

MFB-TF20

 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km (-40~75 degrees C)

MFB-TFA20

 SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~75 degrees C)

MFB-TFB20

 SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-20km (-40~75 degrees C)

MFB-TFA40

 SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-40km (-40~75 degrees C)

MFB-TFB40

 SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-40km (-40~75 degrees C)

MFB-TSA

 SFP-Port 100BASE-BX Transceiver (Multi-mode/WDM,TX:1310nm RX:1550nm / DDM) - 2km (-40~75 degrees C)

MFB-TSB

 SFP-Port 100BASE-BX Transceiver (Multi-mode/WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40~75 degrees C)

WDM Tx-1310, 20KM, 100Mbps SFP fiber transceiver, DDM Supported
