Planet MTB-LR80 10G SFP+ Fiber Transceiver (Single-Mode, 1550nm, DDM) -
Planet MTB-LR80 10G SFP+ Fiber Transceiver (Single-Mode, 1550nm, DDM) -

Planet

Planet MTB-LR80 10G SFP+ Fiber Transceiver (Single-Mode, 1550nm, DDM) -

$572.00
SKU: MTB-LR80

Usually Ships in 10 - 12 days

Quantity:
Link to Manufacturer's Page

Contact

Ordering Information

MTB-LB40

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 40km (TX:1330nm RX:1270nm)

MTB-LA40

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 40km (TX:1270nm RX:1330nm)

MTB-LB20

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 20km (TX:1330nm RX:1270nm)

MTB-LA20

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 20km (TX:1270nm RX:1330nm)

MTB-TSR

 1-Port 10GBASE-SR SFP+ Fiber Optic Module - 300m (-40~75 degrees C)

MTB-TLR

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 10km (-40~75 degrees C)

MTB-SR

 1-Port 10GBASE-SR SFP+ Fiber Optic Module - 300m

MTB-LR

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 10km

MTB-LA60

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 60km (TX:1270nm RX:1330nm)

MTB-LB60

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 60km (TX:1330nm RX:1270nm)

MTB-RJ

 1-Port 10GBASE-T SFP+ Copper Fiber Optic Module - 30m

MTB-LR40

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 40km

MTB-TLR40

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 40km (-40~75 degrees C)

MTB-SR2

 1-Port 10GBASE-LR SFP+ Fiber Optic Module – 2km

MTB-LR20

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 20km

MTB-LR60

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 60km

MTB-LR80

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 80km

MTB-TSR2

 1-Port 10GBASE-LR SFP+ Fiber Optic Module – 2km (-40~75 degrees C)

MTB-TLR20

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 20km (-40~75 degrees C)

MTB-TLR60

 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 60km (-40~75 degrees C)

MTB-TLA20

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 20km (TX:1270nm RX:1330nm) (-40~75 degrees C)

MTB-TLB20

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 20km (TX:1330nm RX:1270nm) (-40~75 degrees C)

MTB-TLA40

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 40km (TX:1270nm RX:1330nm) (-40~75 degrees C)

MTB-TLB40

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 40km (TX:1330nm RX:1270nm) (-40~75 degrees C)

MTB-TLA60

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 60km (TX:1270nm RX:1330nm) (-40~75 degrees C)

MTB-TLB60

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 60km (TX:1330nm RX:1270nm) (-40~75 degrees C)

MTB-LA10

 1-Port 10GBASE-BX SFP+ Fiber Optic Module - 10km (TX:1270nm RX:1330nm)

MTB-LB10

1-Port 10GBASE-BX SFP+ Fiber Optic Module - 10km (TX:1330nm RX:1270nm)

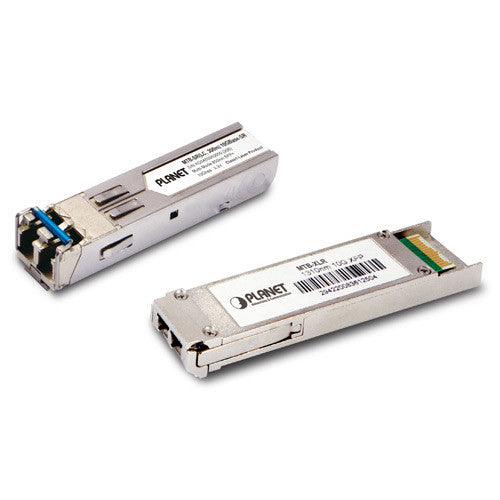

The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode, LC), to up to 60 kilometers (single-mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 75 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart.

The 10GBASE-T SFP+ Copper Transceiver is specifically designed for high-speed communication links that require 10 gigabit Ethernet over Cat 6a/7 cable. It is the first SFP+ transceiver that offers 10Gb/s communication over fiber optic media.

Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center to expand without added expenses. The added benefit is that it provides backward compatibility with legacy networks by adopting standard-based technology of the familiar RJ45 connector.

10G SFP+ Fiber Transceiver (Single-Mode, 1550nm, DDM) - 80km
