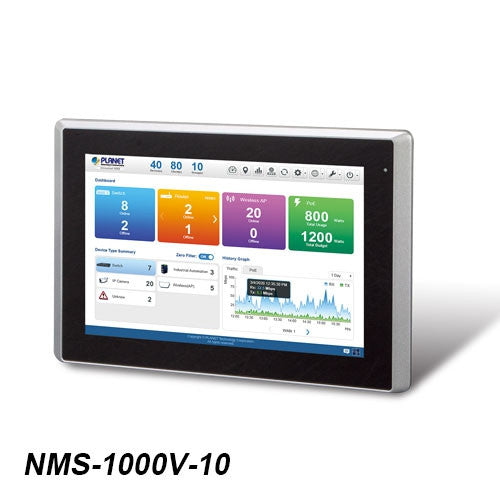

Planet NMS-1000V-10 Universal Network Management Controller with 10" LCD Touch Screen

Planet NMS-1000V-10 Features

Industrial-grade Physical Hardware

• Intel® Celeron® N2930 up to 1.8 GHz
• 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2 USB 3.0 ports for configuration backup and restoration
• 1 audio line out (*reserve)
• 1 HDMI interface
• 2 DB-9 COM1,COM2 (*reserve)
• 1 3-pin DC power input terminal
• 1 2-pin connector for power on/off button (*reserve)
• VESA (100 x 100) panel mount

Network Devices Management

• Dashboard: Providing the at-a-glance view of system, device summary, traffic, PoE network status
• Wizard setup: Easy to use step-by-step guidance
• Node Discovery: To detect PLANET managed devices available and allow AP grouping to accelerate AP management.
• Topology Viewer: A topology of network devices compliant with SNMP, ONVIF, Smart Discovery and LLTD Protocol.
• Event Reports: The status of a network can be reported via network alarm, system log.
• Alarm System: Popup alerts and email alerts for the administrator via the SMTP server.
• Batch Provisioning: Enabling multiple APs to be configured and upgraded at one time by using the designated profile.
• Coverage Heat Map: Real-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment.
• Customized Profile: Allowing the creation and maintenance of multiple wireless profiles
• Auto Provision: Multi-AP provisioning with one click
• Cluster Management: Simplifying high-density AP management
• Zone Plan: Optimizing AP deployment with actual signal coverage
• Authentication: Built-in RADIUS server seamlessly integrated into the enterprise network
• User Control: Allowing on-demand account creation and user-defined access policy
• Scalability: Free system upgrade and AP firmware bulk upgrade capability
• Maximum Scalability: 50 floor maps, 1024 nodes, 128 AP groups, 128 SSID profiles, 1024 managed APs, 20,000 clients, 20,000 RADIUS user accounts, 50 RADIUS user groups and 1024 RADIUS clients.

Network Management Characteristics

• Built-in DHCP Server
• Built-in RADIUS Server
• SSL secure access
• Web-based GUI management interface
• SNMP v1, v2c, and v3 management
• Supports PLANET DDNS/Easy DDNS

Planet NMS-1000V-10 Overview

Universal Network Management Controller with LCD Touch screen

PLANET's NMS-1000V Network Management controller can monitor all kinds of deployed network devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc., compliant with the SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. It thus enables the administrator to centrally manage a network of up to 1024 nodes from a central office, greatly boosting network and power management efficiency. Through the intuitive touch panel, any network exception messages can be displayed in real time to greatly improve the work efficiency of network management personnel. With its user authentication management, the NMS-1000V enhances data transmission security in the modern factory automation systems.

Watch Over Network within Minutes

The domain information web page presents a managed devices list and topology view, providing the at-a-glance and efficient summary of your management network. It lets you have a valuable information on the current wired and wireless network statuses via data-driven graphical charts. The topology viewer and event reports enable you to visualize the system usage and node status in real time so as to address whatever issue they may have.

User-friendly Wizard Setup

The NMS-1000V enhances user experience by providing more user-friendly wizard and obvious step-by-step guidance on each related function. Just like an app, it reduces training time and allows even non-technical users to be able to set up wireless network within minutes.

All-new Dashboard Shows Network Statuses in an Instant

The NMS-1000V’s new dashboard includes local site network router, switch, access point statistics and PoE traffic history graph. The administrator can detect the status of any device that is not working normally. He can also find out any disconnected device via Web GUI on the touch panel, and system event and syslog alerts, thus immediately knowing where the disconnection issue comes from.

Real-time Centralized Monitoring with Pop-up Alerts and E-mail Alarm Function

As the NMS-1000V can come out with a topology view of the network of the deployed powered devices, it enables to detect which device is online (Green) or offline (Red). The real-time centralized monitoring of these devices can help the administrator know what the current statuses of these devices are. Pop-up alerts shown on the touch panel tell where the problems are. The e-mail alarm function is designed to send an email alert to the administrator via the SMTP server where syslog information can be found once an abnormality is detected. This can prompt the administrator to quickly fix the identified problem in the network.

Optimizing Wi-Fi Deployment with Floor Maps

With the floor maps, devices can be located according to the field deployment, thus saving your time and cost of on-site support and monitoring. The current statuses of devices are shown in real time and the heat map is able to show the wireless signal coverage and strength to help the administrator fine-tune the overlapping of the adjacent devices anytime to optimize the wireless network performance.

Browser-based Control on IPC Linux Platform

As it is browser-based, the NMS-1000V does not need to be downloaded, making its direct connection to a network. It also can be operated from anywhere via Web browser and network adapter that are able to access managed nodes on a DHCP-enabled network, thus controlling multiple devices through a single PC, laptop or tablet. It supports HDMI interface that can easily connect to another bigger size screen.
