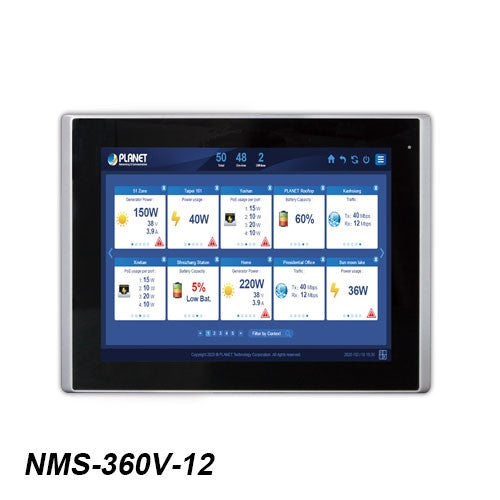

Planet NMS-360V-12 Renewable Energy Management Controller with 12" LCD Touch Screen- 512 nodes
Planet NMS-360V-12 Renewable Energy Management Controller with 12" LCD Touch Screen- 512 nodes

Planet

Planet NMS-360V-12 Renewable Energy Management Controller with 12" LCD Touch Screen- 512 nodes

Sale price$2,316.00
SKU: NMS-360V-12

Usually Ships in 10 - 12 days

Quantity:

Contact

Industrial-grade Physical Hardware

  • 2x10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 2xUSB 3.0 ports for configuration backup and restoration
  • 1 x audio line out (reserve)
  • 1 x HDMI interface
  • 2 x DB-9 COM1,COM2 (reserved)
  • 1 x 3-pin DC power input terminal
  • 1 x 2-pin connector for power on/off button (reserved)
  • VESA (100 x 100) panel mount

BSP-360s Management

Dashboard Providing the at-a-glance view of system, power, traffic, and device event statuses
Device List Providing devices status overview and managed function
Setup Wizard Easy to use step-by-step guidance
Node Discovery Management is carried out once a BSP-360-powered device is detected.
App-like Device Viewing App-like devices that are compliant with SNMP, MQTT, and Smart Discovery
Event Table The status of system can be reported via event alarm
Alarm System E-mail alerts for the administrator via the SMTP server
Device Provisioning Enabling BSP-360 to be configured and upgraded at the same time
Site Map Real-time site map of BSP-360 and IP cams on the user-defined map to optimize energy deployment
Remote PoE control Real-time remote PoE on/off to reboot connected devices
User Control Allowing on-demand account creation and user-defined access policy
Scalability Free system upgrade and BSP-360 firmware bulk upgrade capability
Maximum Scalability 1 site map, 512 nodes, 2048 managed IP cameras.

Network Management Characteristics

  • Built-in DHCP Server
  • SSL secure access
  • Web-based GUI management interface
  • SNMP v1, v2c, and v3 management
  • Supports PLANET DDNS/Easy DDNS

Renewable Energy Management Controller with 12" LCD Touch Screen- 512 nodes (Manage 512 BSP-360s, 2 10/100/1000T LAN Ports, MQTT/SNMP/ONVIF/SmartDiscovery, Traffic&Power history graph, Event alarm, On-time Generation Power&PoE usage&battery capacity&linkup port traffic viewer, site map, batch provisioning, remote PoE ON/OFF, DDNS, cybersecurity features)
